DGKYD RJ45 10P8C Network Jack with Dual-Color LED 6U Gold Plating

Quantità di ordine minimo :	1	Prezzo :	$0.90-1.20

Luogo di origine:	Guangdong, Cina	Numero di modello:	DGKYD211Q072FF5A4D

Informazioni dettagliate
Tipo:	RJ45	Materiale abitativo:	IL NERO DI PBT
Opzione LED:	Verde/arancione e giallo	Fermo:	TAB-Su
Numero di spille:	10	Numero di contatti:	8
Temperatura operativa:	-40 ℃ ~ ℃ 85	Stile di montaggio PCB:	IMMERSIONE
Trasformatore:	Con il trasformatore	Metodo di incapsulamento:	Pacchetto singolo in linea
Placcatura d'oro:	6U	Velocità di prestazione:	10/10/1000/10G Base-T
Materiale scudo:	Lega di rame preplated con nichel	Materiale di placcatura di contatto:	Oro 6u
Materiale di base di contatto:	Bronzo di fosforo
Evidenziare:	RJ45 network jack with LED , 10P8C gold plated connector , dual-color LED RJ45 port

Descrizione di prodotto

High-Speed Gigabit 10P8C Network Jack Socket

Single-port horizontal RJ45 interface with dual-color LED for electronic devices Ethernet connectivity. This high-performance modular jack supports 10/100/1000/10G BASE-T speeds with reliable PCB mounting.

Product Specifications

Part Number	DGKYD211Q072FF5A4D	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	Tab-UP
Filter	With Filter	LED Option	With LED
LED Color	Green-Orange & Yellow	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000/10G BASE-T	Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single	Number of Positions	10
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Product Images

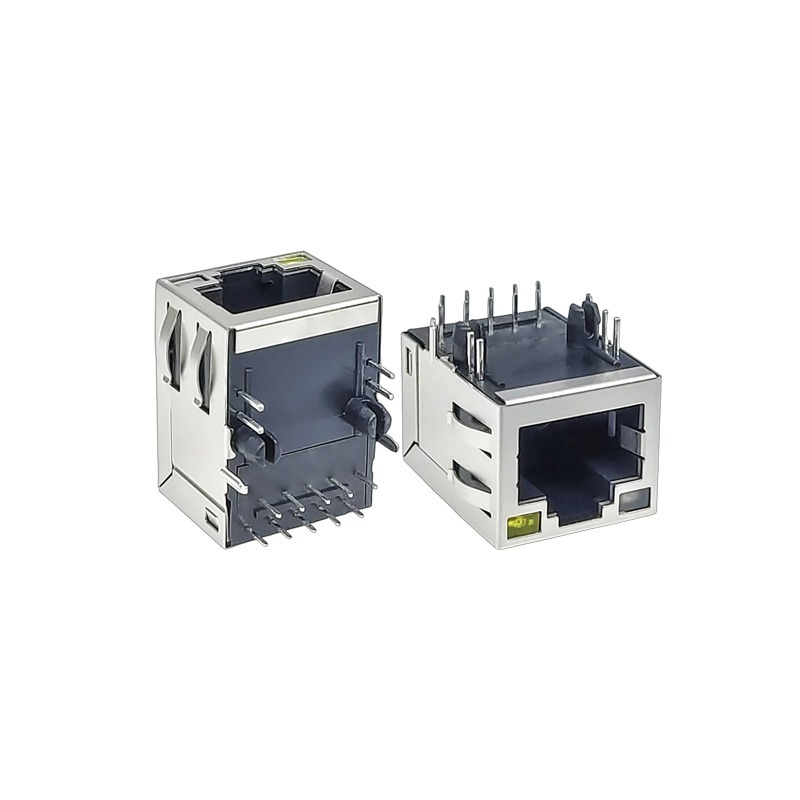

DGKYD RJ45 10P8C Network Jack with Dual-Color LED 6U Gold Plating

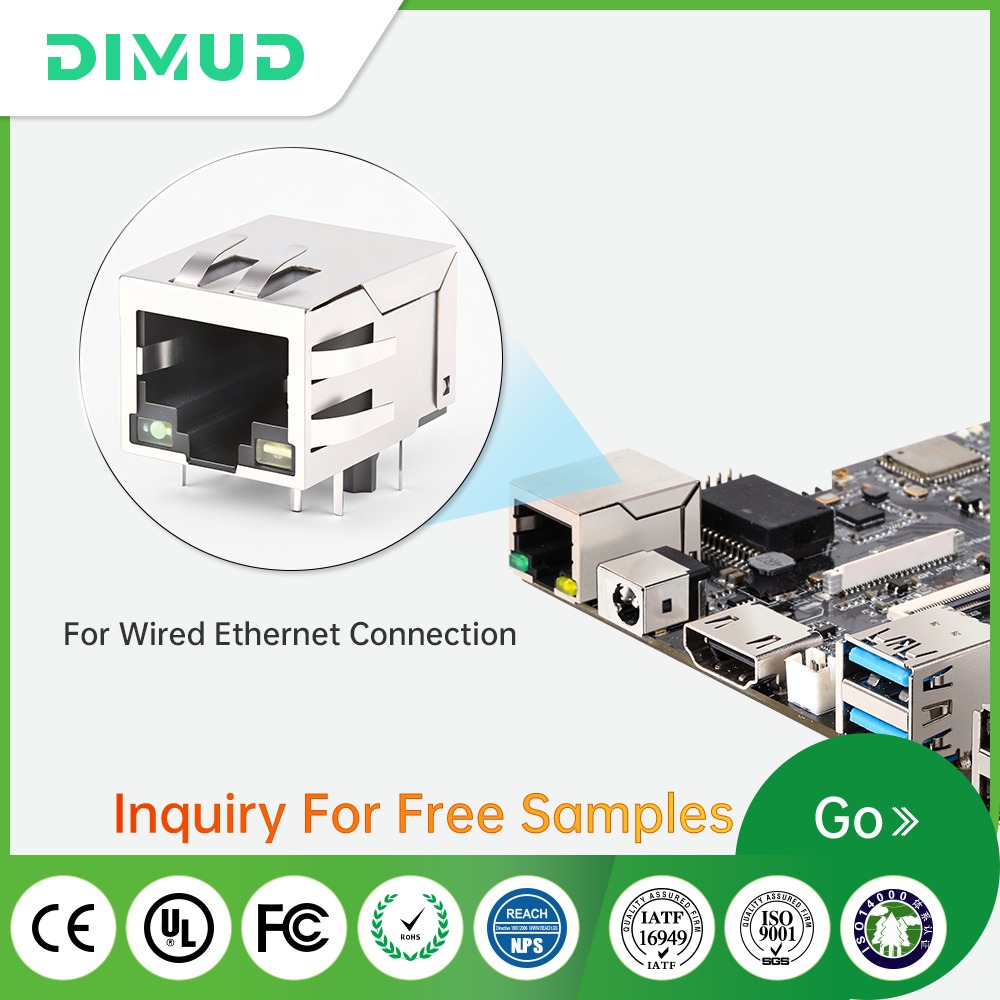

RJ45 network jack with LED

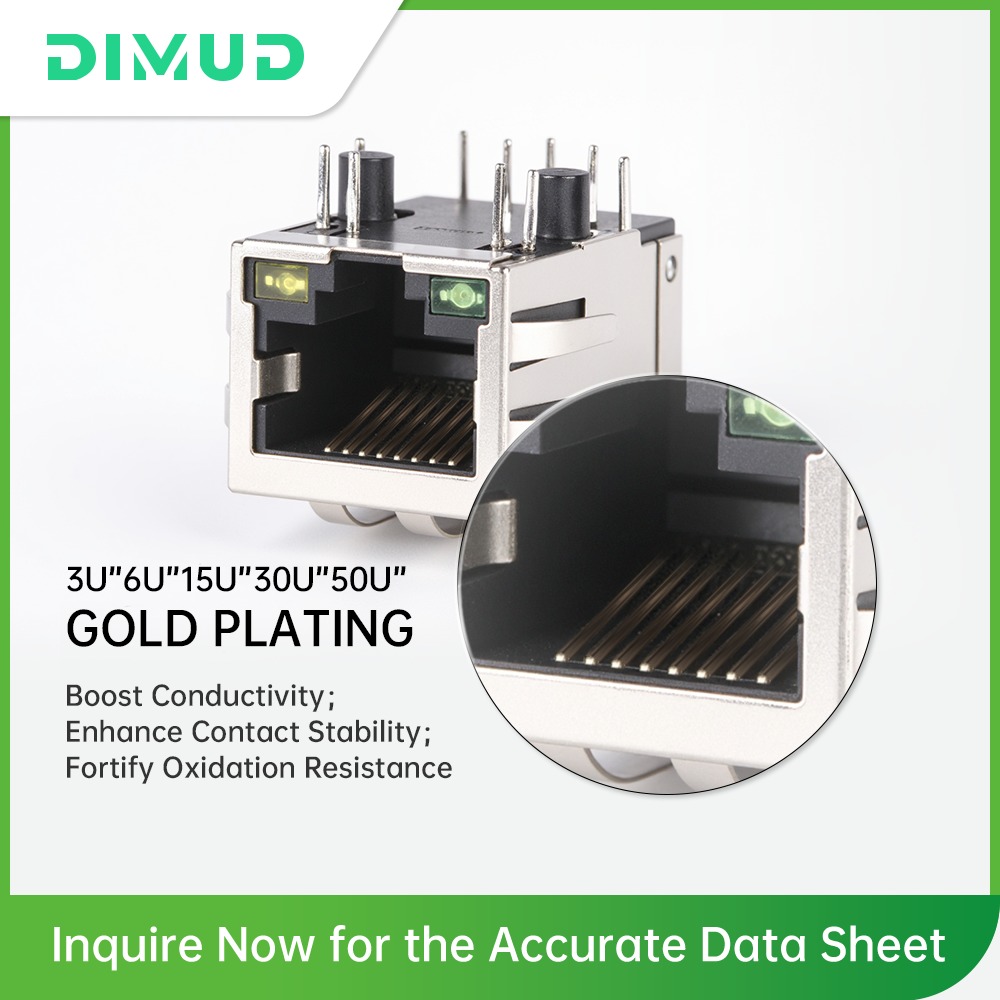

10P8C gold plated connector

dual-color LED RJ45 port
