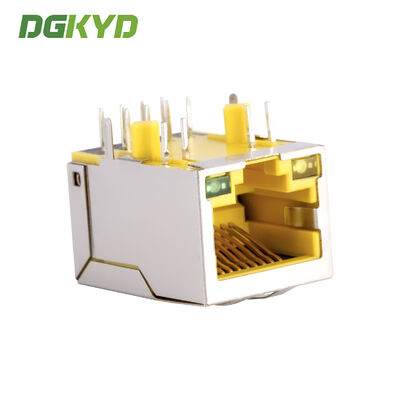

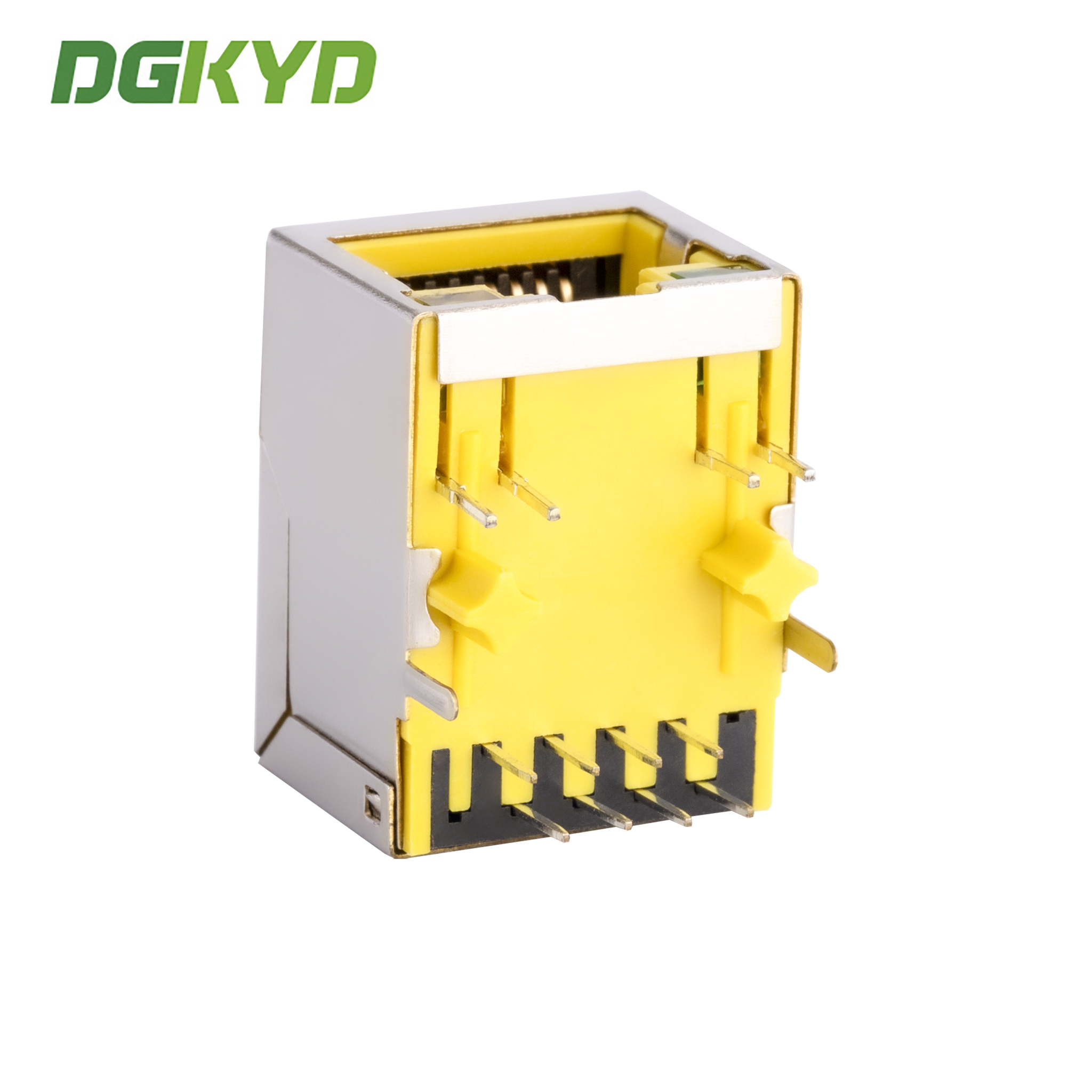

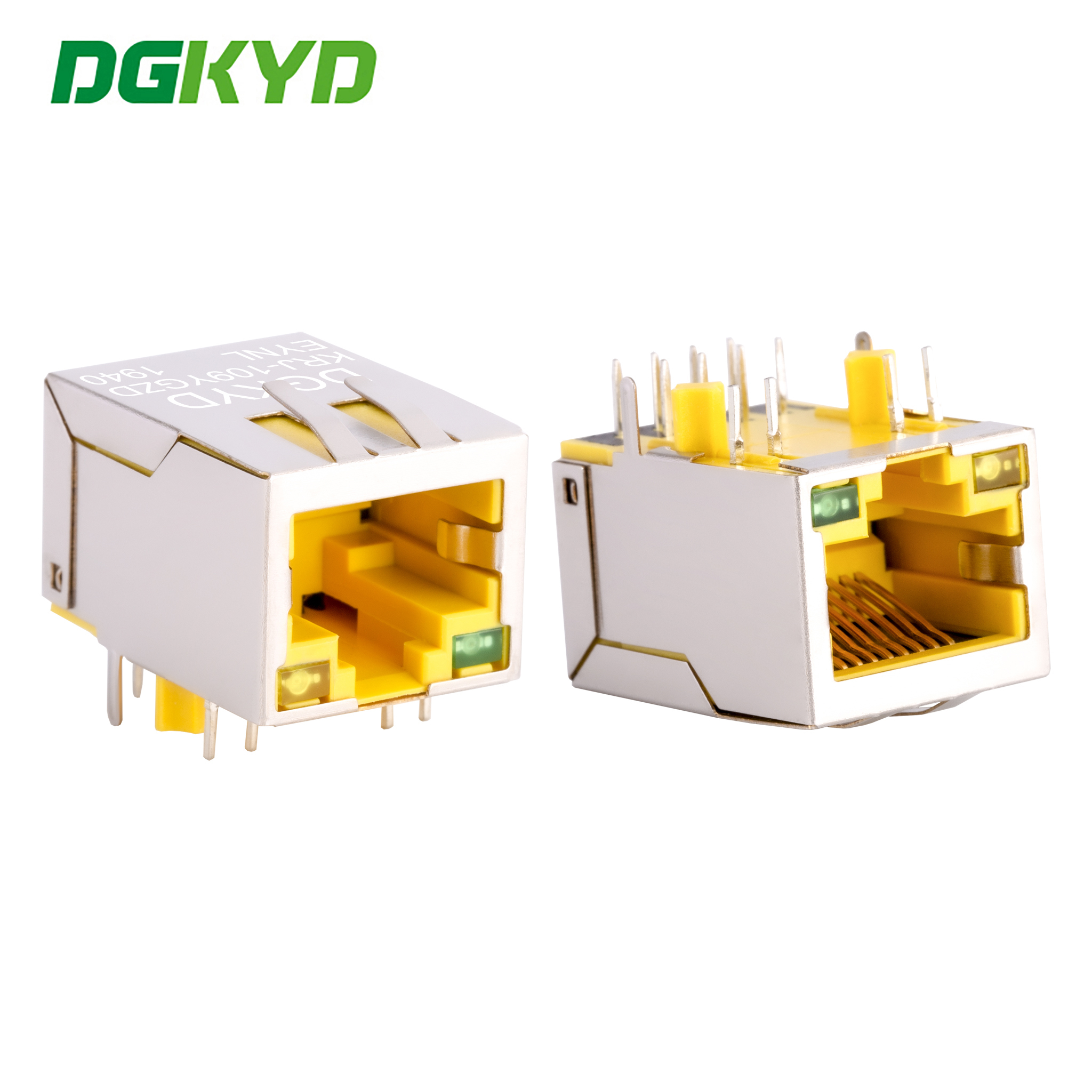

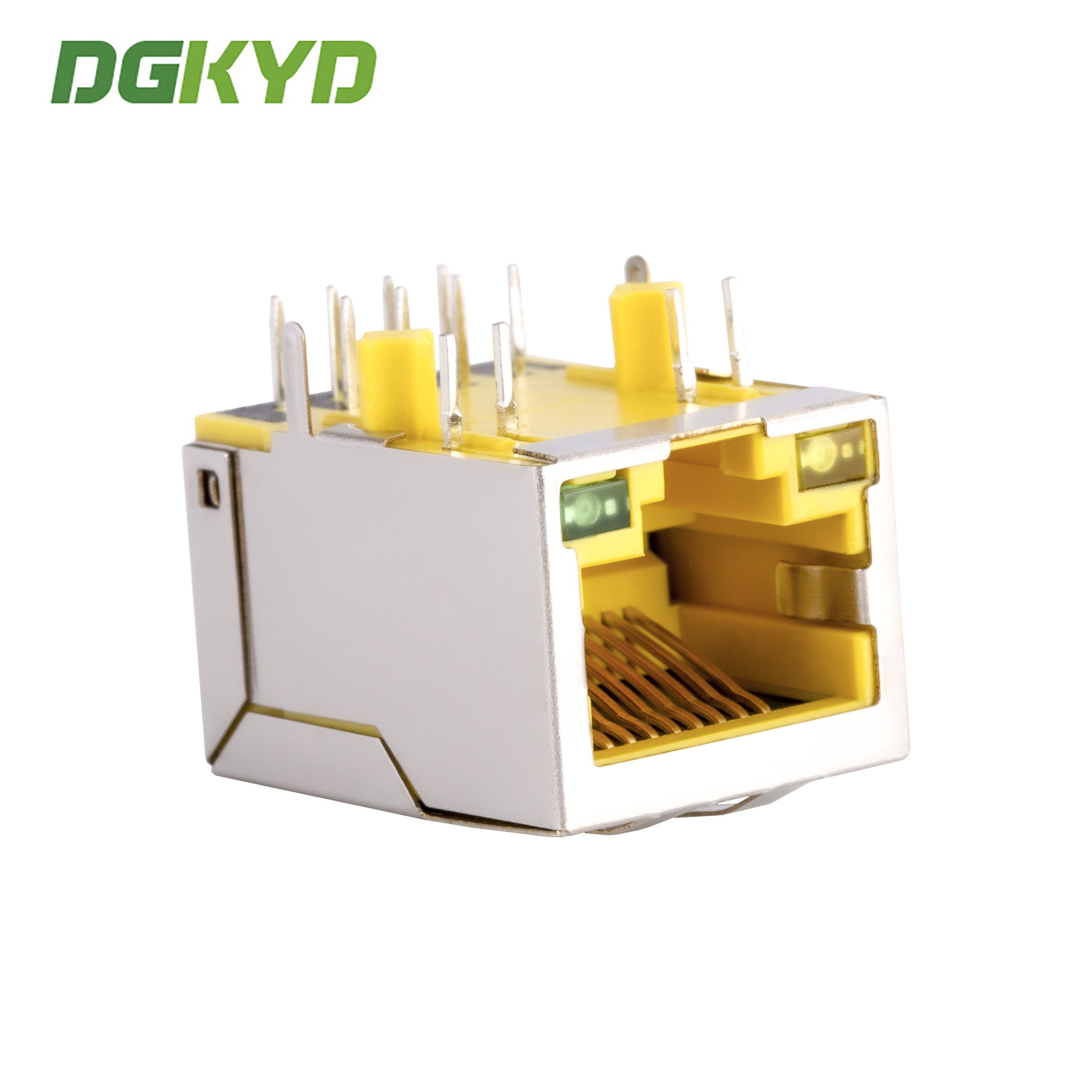

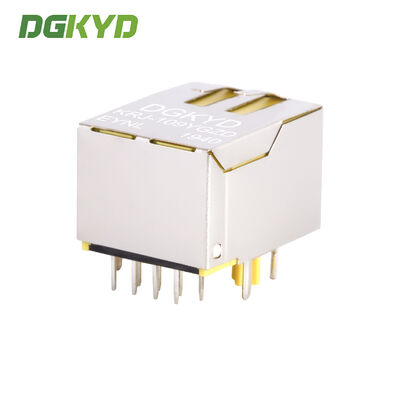

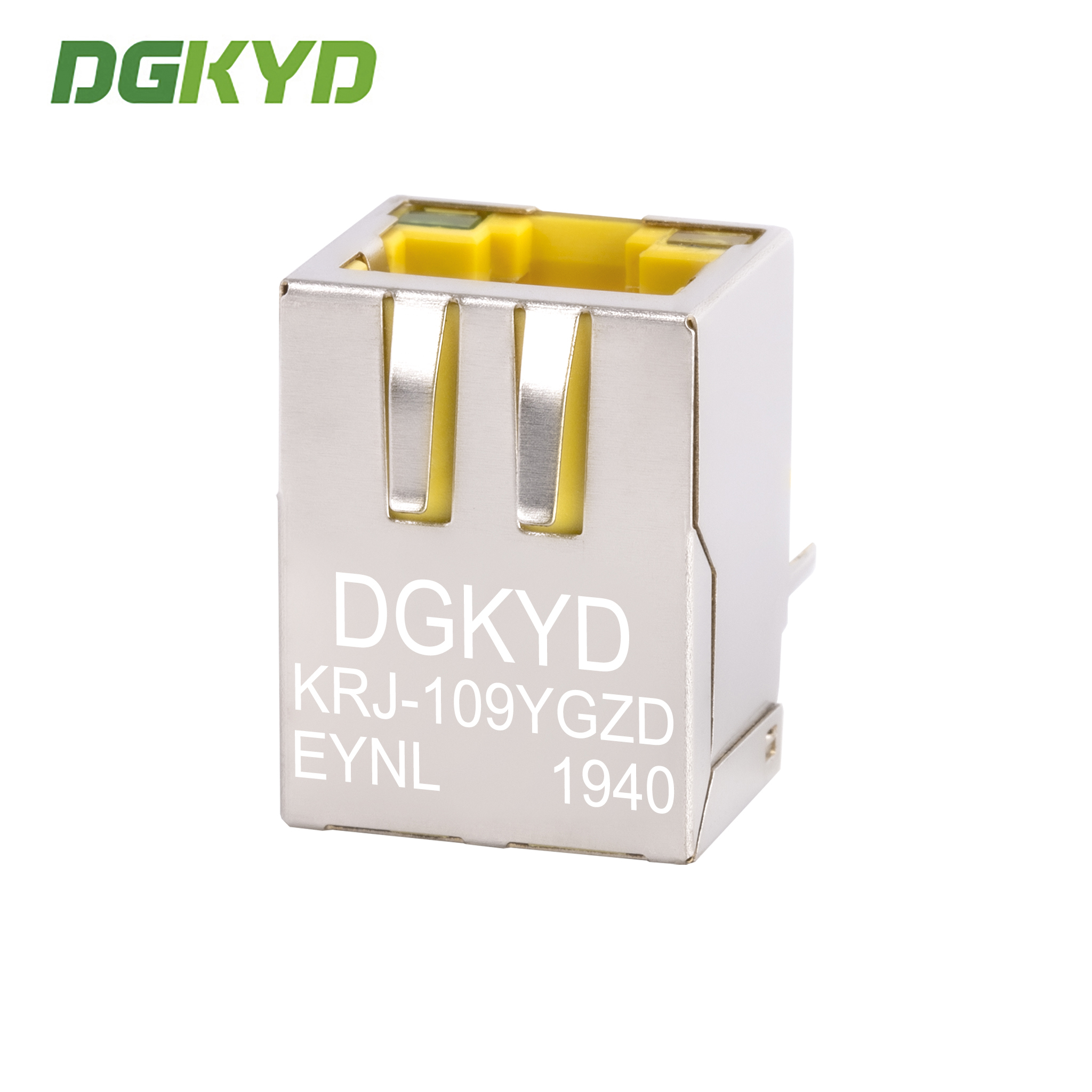

10/100 baseT RJ45 connector industrial Ethernet socket PCB connector with LAN Filter for Adsl, yellow housing KRJ-109YGZDEYNL

Quantità di ordine minimo :	1 pezzo	Prezzo :	Please contact us to get the latest price.
Imballaggi particolari :	Vassoio in cartone	Tempi di consegna :	10 giorni
Termini di pagamento :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Capacità di alimentazione :	100K PC/giorno

Luogo di origine:	Dongguan della Cina	Marca:	DGKYD
Certificazione:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Numero di modello:	KRJ-109YGZDEYNL

Informazioni dettagliate
Nome del prodotto:	RJ45 con trasformatore	Alloggio:	Fenolico, PBT giallo (UL94V-0)
Nocciolo di plastica:	Riempitivo in fibra di vetro PBT giallo (UL94V-0), ROHS	Scudo RJ45:	SÌ
No.Port:	1x1	Tipo:	Jack femmina
GUIDATO:	giallo/verde	Numero di posizioni/contatti:	8P8c (RJ45, Ethernet)
Ploting d'oro su pin di contatto:	6U	Temperatura operativa:	-40 ° C ~+85 ° C.
Temperatura di stoccaggio Temperatura di stoccaggio:	- 40 ℃ ~ 85 ℃
Evidenziare:	industrial RJ45 connector with LAN filter , RJ45 PCB connector for Ethernet , yellow housing RJ45 socket with transformer

Descrizione di prodotto

10/100 baseT RJ45 Connector Industrial Ethernet Socket PCB Connector with LAN Filter for Adsl, Yellow Housing KRJ-109YGZDEYNL

Part Number	KRJ-109YGZDEYNL	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	With Filter	LED Option	With LED
LED Color	Yellow/Green	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	1X1 Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Yellow
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

RJ45 connector maintains good contact between gold finger and crystal head by gold plating on the surface. Standard plating is 6u, with options for 15u, 30u, or 50u available per customer request and cost considerations. Gold finger insert and pull life exceeds 750 cycles.

LED Specifications

Emitting Color	Dominant Wavelength (nm)	Forward Voltage (V)	Forward Current (A)	Type
Green	570-575	1.8-2.4	20mA	Squareness
Yellow	585-590	1.8-2.4	20mA	Squareness

Product Features

Interface type: Crystal head application for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working frequency: High frequency characteristics with filtering and anti-interference
Operating temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead-free soldering: Wave soldering height up to 265℃

Manufacturing Capabilities

Business model: Direct manufacturer
Delivery time: Approximately two weeks for standard delivery
Customization options:
- LED indicator colors (green, yellow, red, orange, blue, bi-color)
- EMI shielding options
- Magnetic core coil ratio variations
- Multiple magnetic circuit options
- Contact gold plating options (3U, 6U, 15U, 30U, 50U)
- Housing material options (PBT, PA46, PA9T, LCP)
Products meet industry standards for electrical properties, mechanical specifications, and environmental compliance
