Single Countersunk 4.2 SMT RJ45 Connector Jack With Shield DGKYDCB421188AB1W6SB

Quantità di ordine minimo :	Negoziabile	Prezzo :	Negoziabile
Imballaggi particolari :	Piatto in cartone	Tempi di consegna :	7-14 giorni
Termini di pagamento :	L/C, D/A, D/P, T/T, Western Union, MoneyGram	Capacità di alimentazione :	60000 pezzi al giorno

Luogo di origine:	DongGuan della Cina	Marca:	DGKYD
Certificazione:	RoHS/CE/FCC/CE/ISO9001/ISO14001	Numero di modello:	DGKYDCB421188AB1W6SB

Informazioni dettagliate
Nome del prodotto:	RJ45 connettore Jack With Shield	Tipo di connettore:	- Jack.
Applicazione:	PC, router, rete hub USB RJ45 ecc.	Genere:	Femmina
Trasformatore:	RJ45 senza trasformatore	PROFILO DI ALTEZZA:	basso profilo extra
Evidenziare:	Countersunk 4.2 SMT RJ45 Connector , RJ45 Connector Jack With Shield , Single RJ45 Connector Jack

Descrizione di prodotto

RJ45 connector single countersunk 4.2 SMD With shield With LED 8p8c

Paramters

ATTRIBUTE	ATTRIBUTE VALUE
TEMPERATURE	-40 to +85℃
GROUNDING OPTIONS	Panel Ground and PCB Ground
SHIELD PLATING MATERIAL	NICKEL
SHIELD EMI TABS	YES
SHIELD	METAL SHIELD
ROHS COMPLIANT	YES
PANEL STOP	NONE
PCB MOUNT ANGLE	SIDE ENTRY
PACKAGE	SMT
CONNECTOR & CONTACT TERMINAATES TO	Printed Circuit Board
NUMBER OF PORTS	1X1
NUMBER OF CONTACTS	8
LED OPTION	L-Yellow / R-Green
LATCH ORIENTATION	LATCH DOWN
HOUSING MATERIAL	LCP UL94V-0
CONTACT MATING AREA PLATING	GOLD FLASH PLATING
CONNECTOR TYPE	RJ45
CONNECTOR MATERIAL COLOR	BLACK

Drawing

Single Countersunk 4.2 SMT RJ45 Connector Jack With Shield DGKYDCB421188AB1W6SB 0

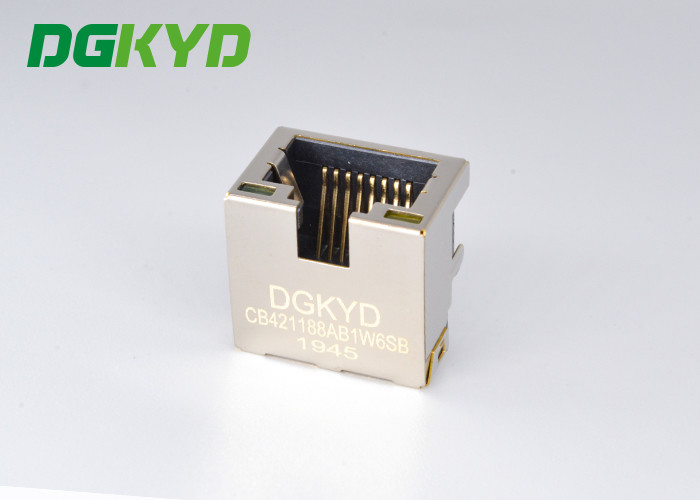

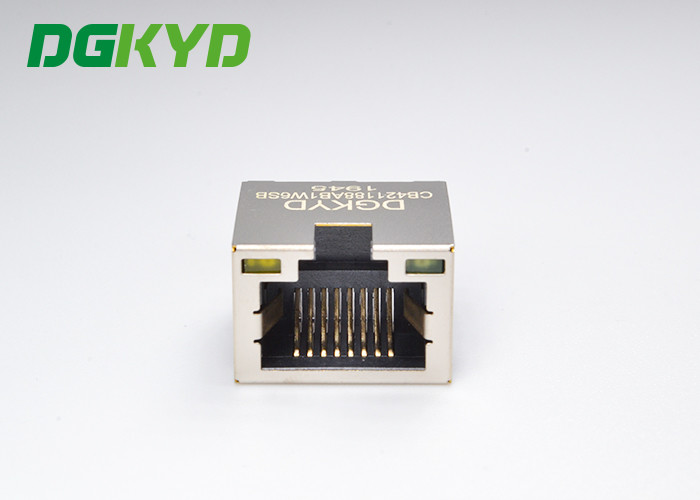

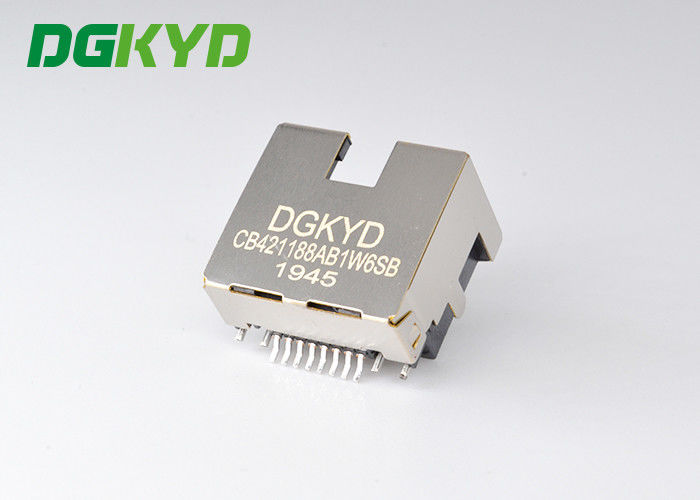

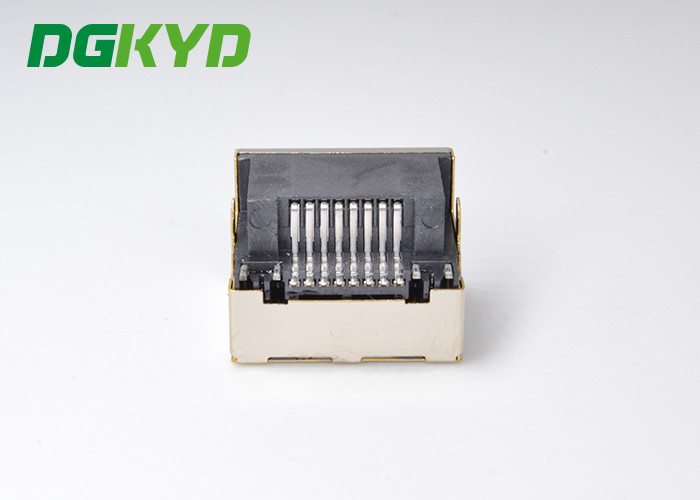

Pictures

Single Countersunk 4.2 SMT RJ45 Connector Jack With Shield DGKYDCB421188AB1W6SB 1
