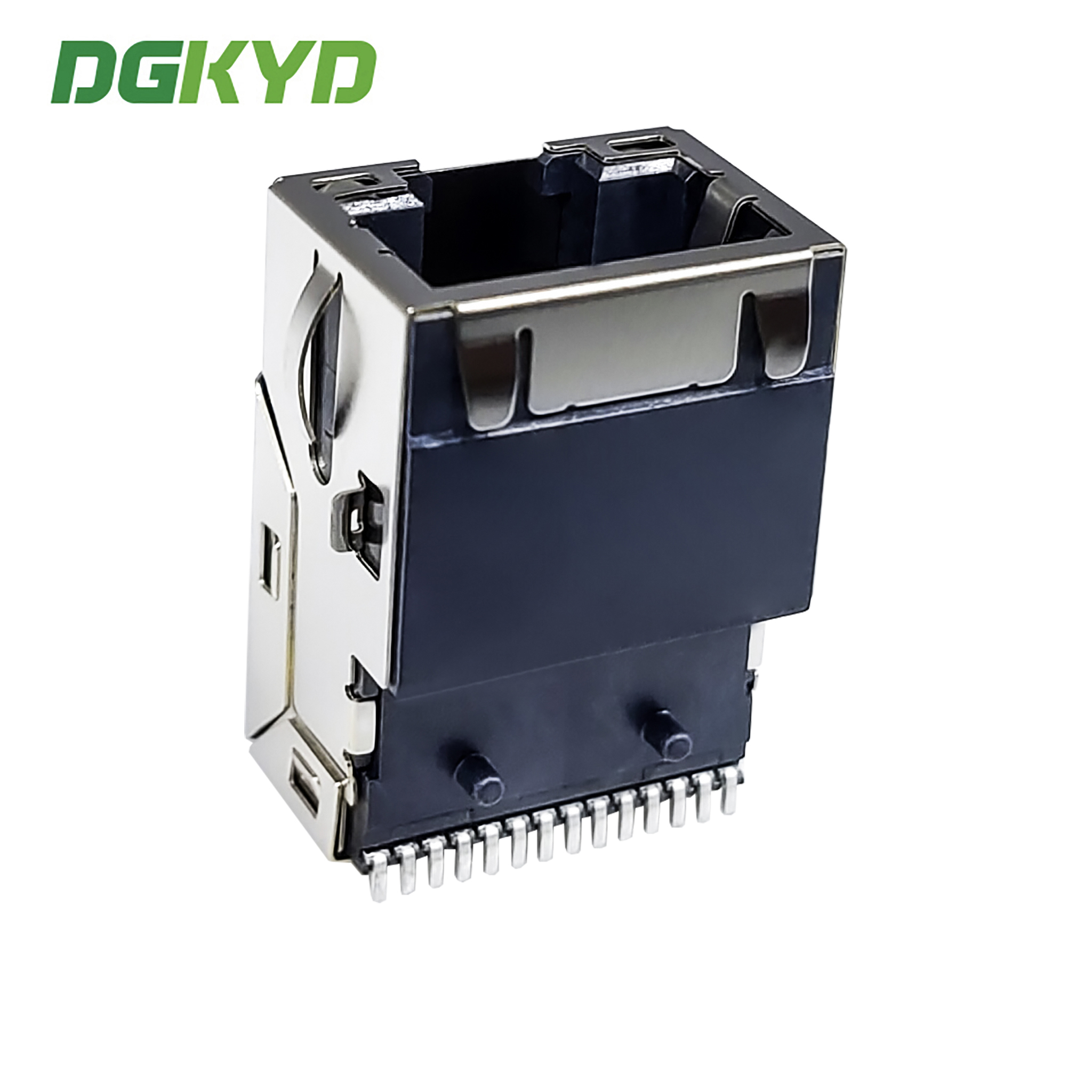

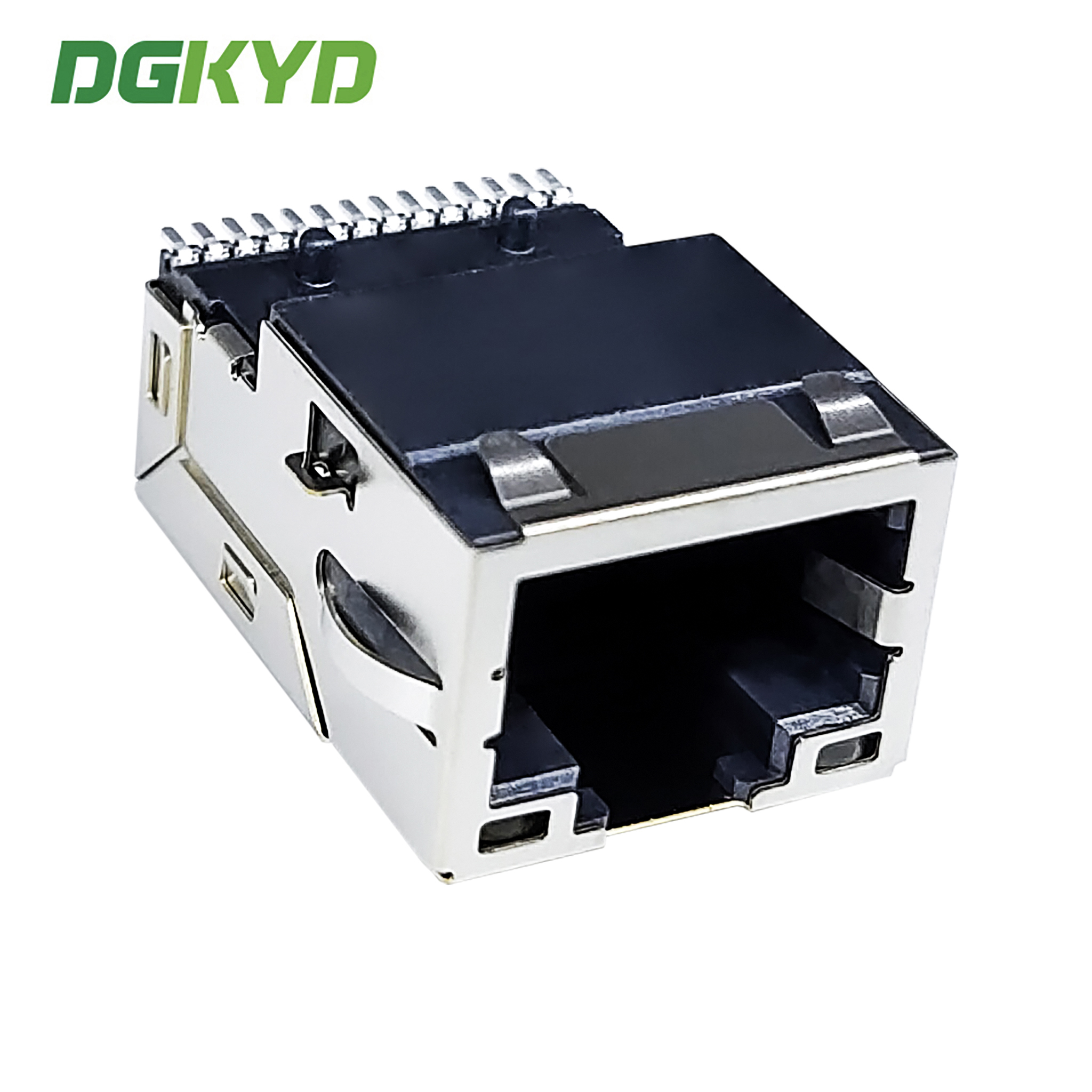

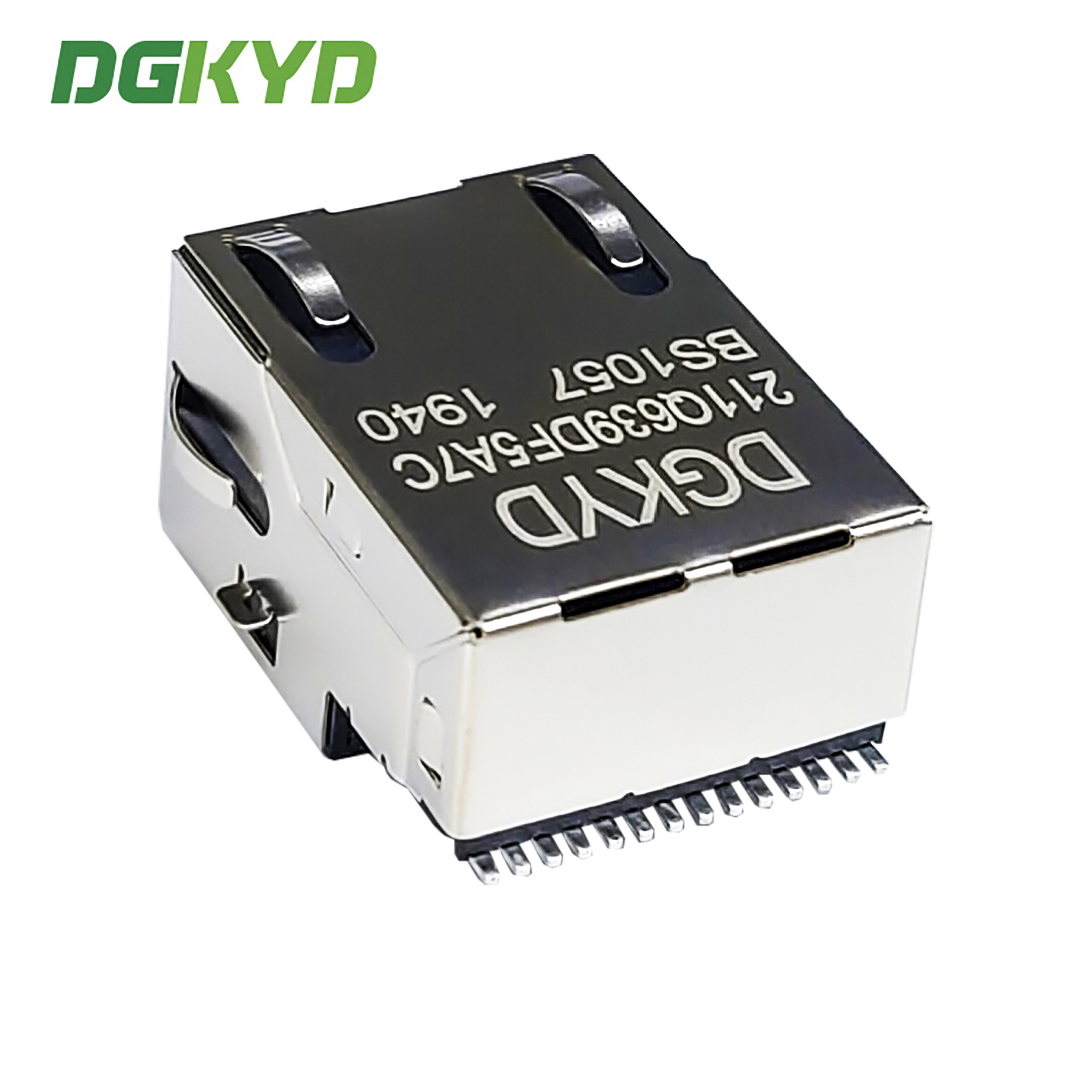

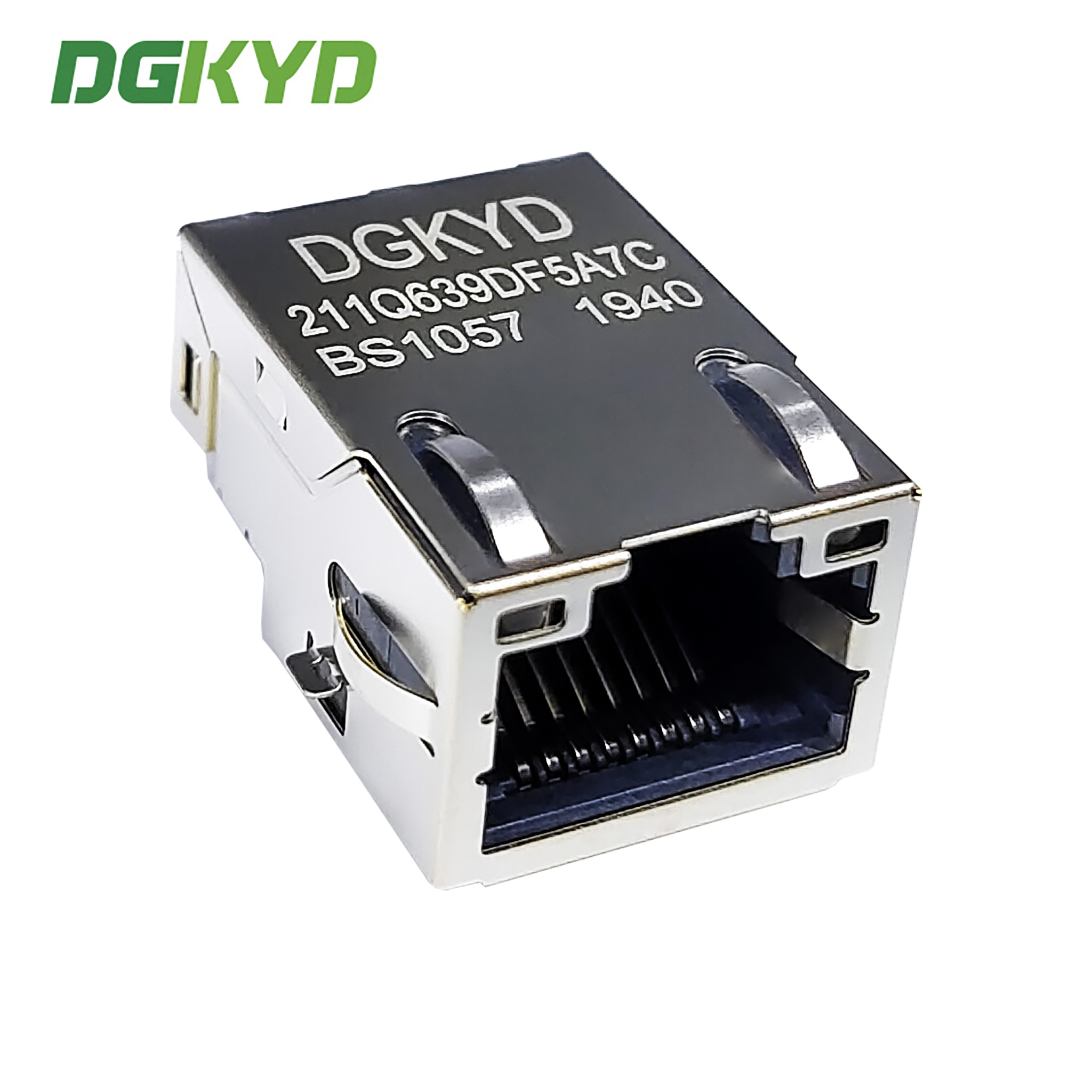

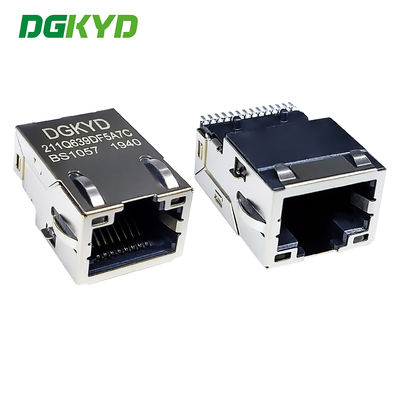

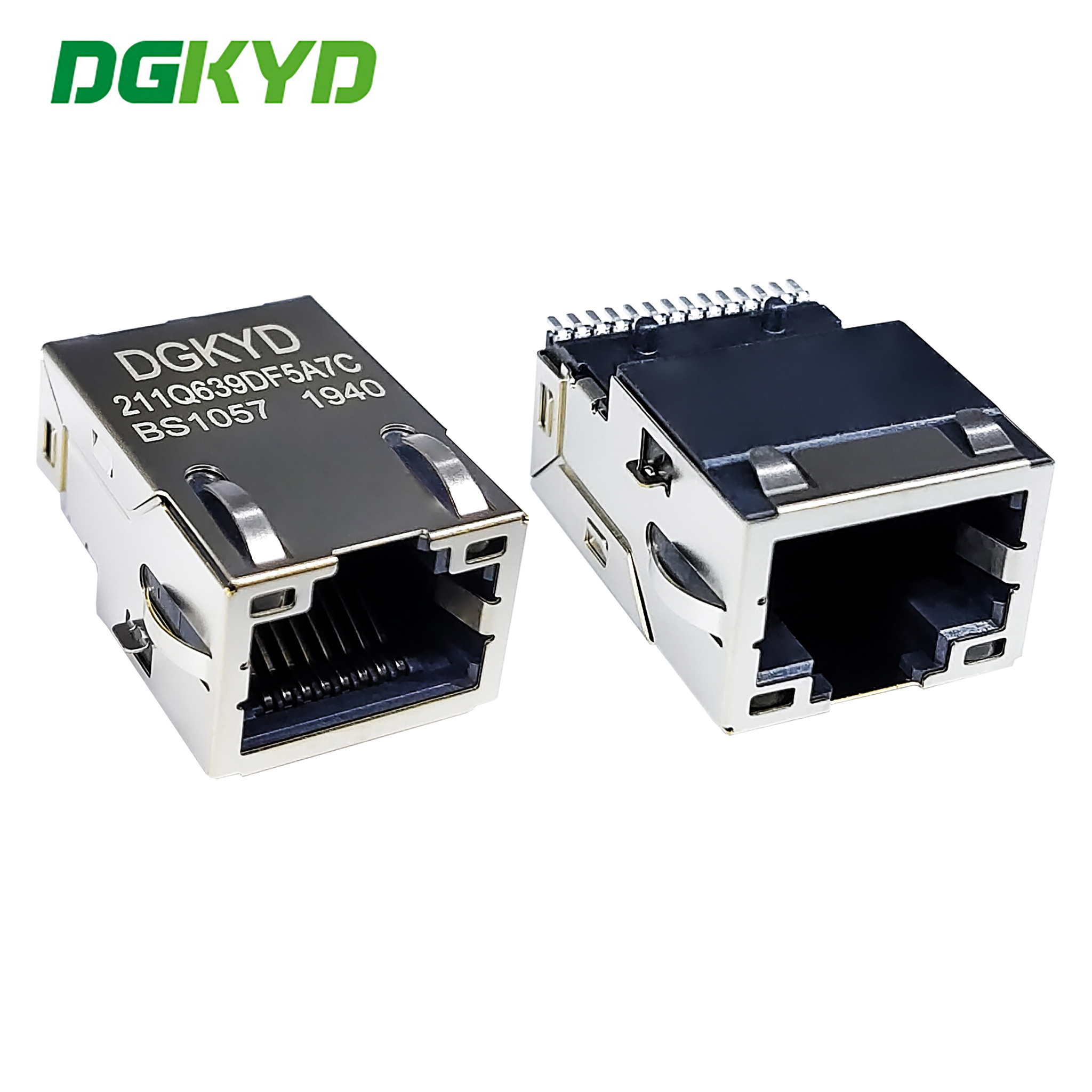

RJ45 connector 10G Ethernet filter SMT sinking board surface mount Ethernet port socket RJ45 female socket DGKYD211Q639DF5A7CBS1057

Quantità di ordine minimo :	Negoziazione	Prezzo :	Please contact us to get the latest price.
Imballaggi particolari :	550 Vassoio in cartone	Tempi di consegna :	10 giorni
Termini di pagamento :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Capacità di alimentazione :	100K PC/giorno

Luogo di origine:	Dongguan della Cina	Marca:	DGKYD
Certificazione:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Numero di modello:	DGKYD211Q639DF5A7CBS1057

Informazioni dettagliate
Tipo di prodotto:	RJ45	Metodo di incapsulamento:	dispositivo del superficie-supporto
Stile di montaggio PCB:	SMD	Forma:	Rettangolo
Scudo:	Ottone	Numero 12di birilli:	10
Numero di core:	8	Dimensione (mm):	15,521,511,35
Ploting d'oro su pin di contatto:	6U	Temperatura operativa:	- 40 ℃ ~ 85 ℃
Temperatura di conservazione:	- 40 ℃ ~ 85 ℃
Evidenziare:	10G Ethernet RJ45 connector , SMT surface mount RJ45 socket , RJ45 female socket with transformer

Descrizione di prodotto

RJ45 Connector 10G Ethernet Filter SMT Sinking Board Surface Mount Ethernet Port Socket RJ45 Female Socket DGKYD211Q639DF5A7CBS1057

Product Description

RJ45 connector 10G Ethernet filter SMT sinking board surface mount Ethernet port socket RJ45 female socket DGKYD211Q639DF5A7CBS1057

Product Specification Document

Parameters

Part Number	DGKYD211Q639DF5A7CBS1057	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Green/Orange-Yellow	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printedout Circuit Board
Port Configuration	Single Ports	Number of Positions	10
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	LCP Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Our Strengths

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ - 85℃
Storage temperature: -40℃ - 85℃
Lead free soldering: wave soldering height up to 265℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks.
Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED) Shield with EMI fingers or not coil ratio of magnetic core magnetics circuit diversification optional contact gold plating (FU, 3U, 6U, 15u, 30U, 50U) plastic housing material (PBT,PA46,PA9T, LCP)
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
