RJ11 crystal head 6P6C crystal head DGKYDRJ111166F1A1WW041 (short body)

Quantità di ordine minimo :	1 pezzo	Prezzo :	Please contact us to get the latest price.
Imballaggi particolari :	Vassoio in cartone	Tempi di consegna :	10 giorni
Termini di pagamento :	T/T,D/P,D/A,L/C,Western Union,MoneyGram	Capacità di alimentazione :	100k pezzi/giorno

Luogo di origine:	Dongguan della Cina	Marca:	DGKYD
Certificazione:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Numero di modello:	DGKYDRJ111166F1A1WW041
Document:	DGKYDRJ111166F1A1WW041.pdf

Informazioni dettagliate
Alloggiamento:	P C	Valutazione attuale:	1,5 AMP
Resistenza di contatto:	50 milioni di ore al massimo.	terminale:	1U"ORO PLATATO.
TEMPERATURA D'OPERAZIONEResistenza:	-40°C ≈ +80°C.	VOLTAGGIO VOLTAGGIO nominale:	125 VAC RMS.
Resistenza di isolamento:	1000 MEGOHMS MIN @ 500 VDC.	Rigidità dielettrica:	1000 VAC RMS 50HZ, 1 minuto.
Conchiglia:	C2680R-H,T=0,20MM,20~50U" MIN	Tipo:	Testa a cristallo
Evidenziare:	RJ11 crystal head connector , 6P6C short body connector , RJ11 wire harness connector

Descrizione di prodotto

RJ11 Crystal Head 6P6C Modular Connector

Part Number: DGKYDRJ111166F1A1WW041 (Short Body)

Professional-grade RJ11 6P6C modular connector designed for printed circuit board applications with side entry mounting.

Product Documentation

Download Product Specification Document (PDF)

Technical Specifications

Parameter	Specification
Part Number	DGKYDRJ111166F1A1WW041
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong, China
Certification	CE / UL / FCC / Reach / RoHS
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ11
Connector Type	Modular Jack
Latch Style	Standard
Filter	Without internal filter
LED Option	Without LED
Panel Stops	Without Panel Stops
Shielded	Yes
Applies To	Printed Circuit Board
Performance Speed	Standard
Grounding Options	Panel Ground and PCB Ground
Port Configuration	1 port
Number of Positions	6
Jack Configuration	1 x 1
Terminals per Port	6
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 1u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PC Polyester
Housing Color	White
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

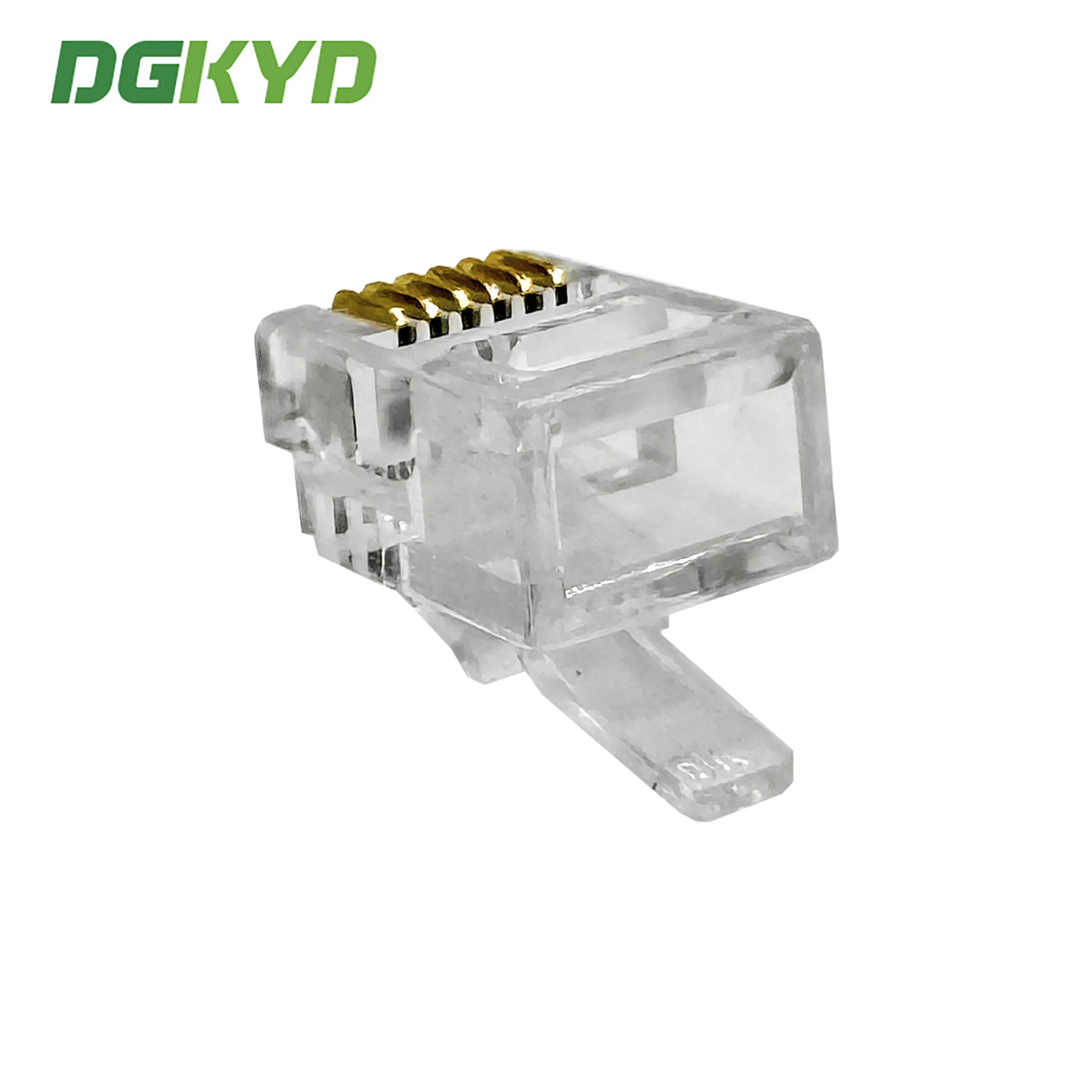

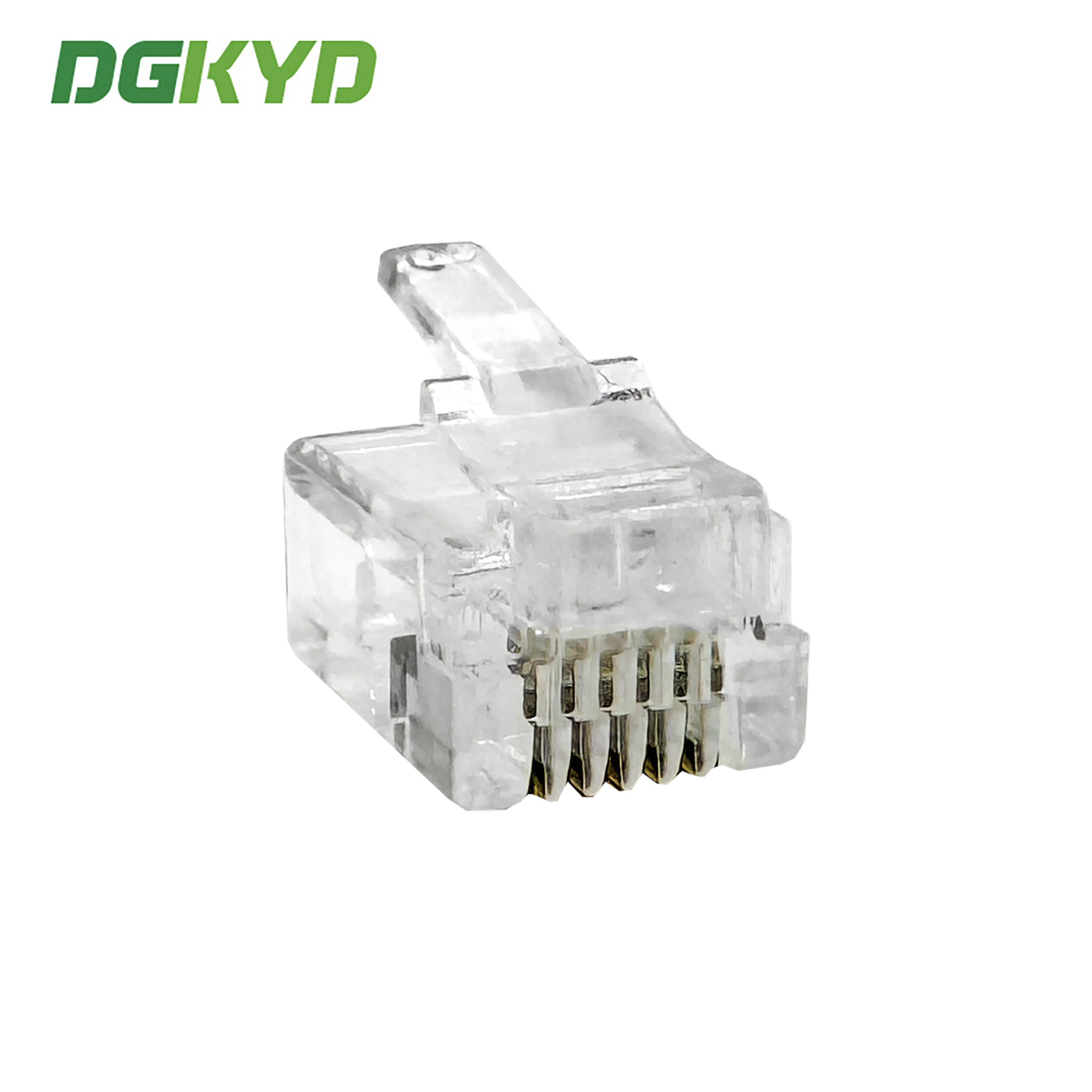

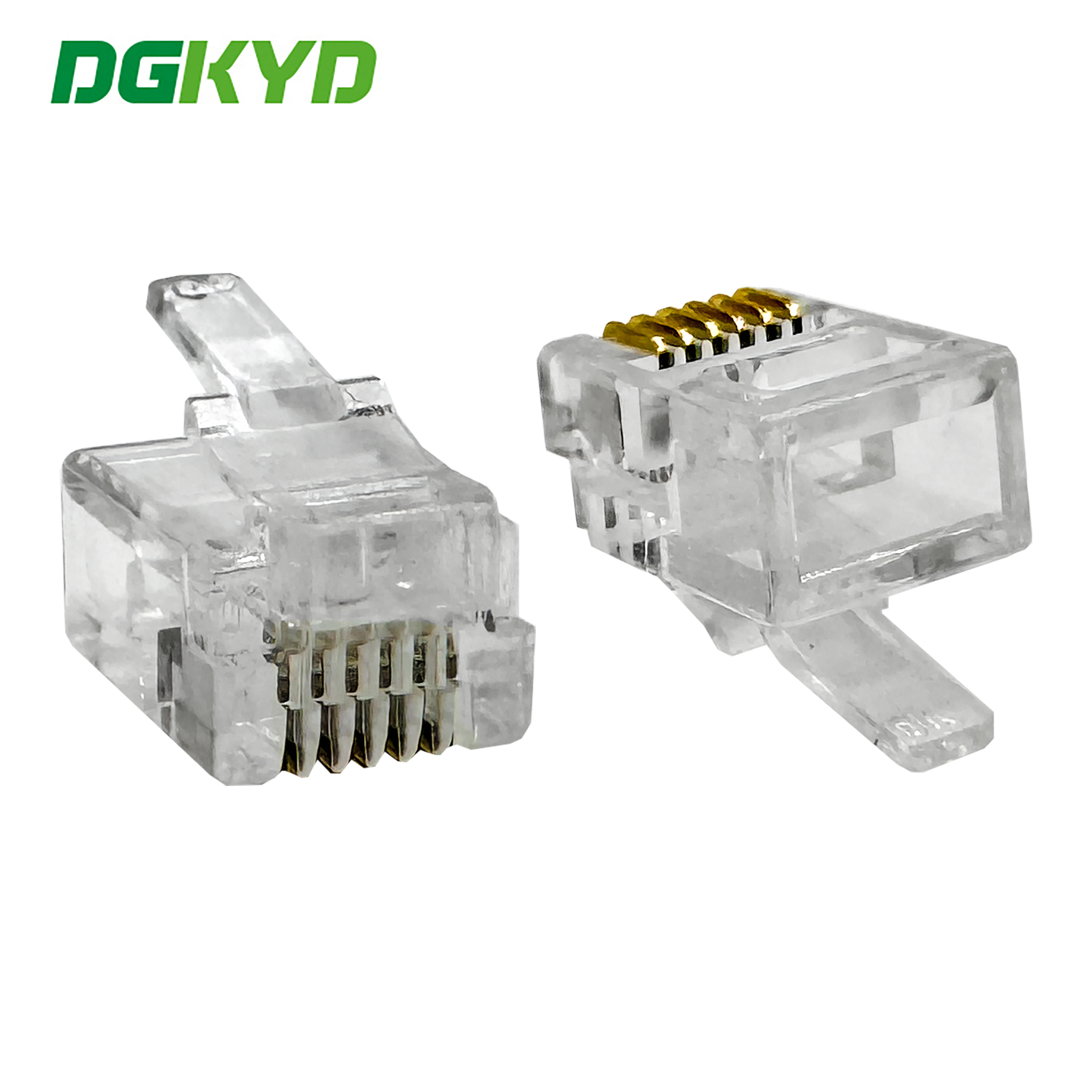

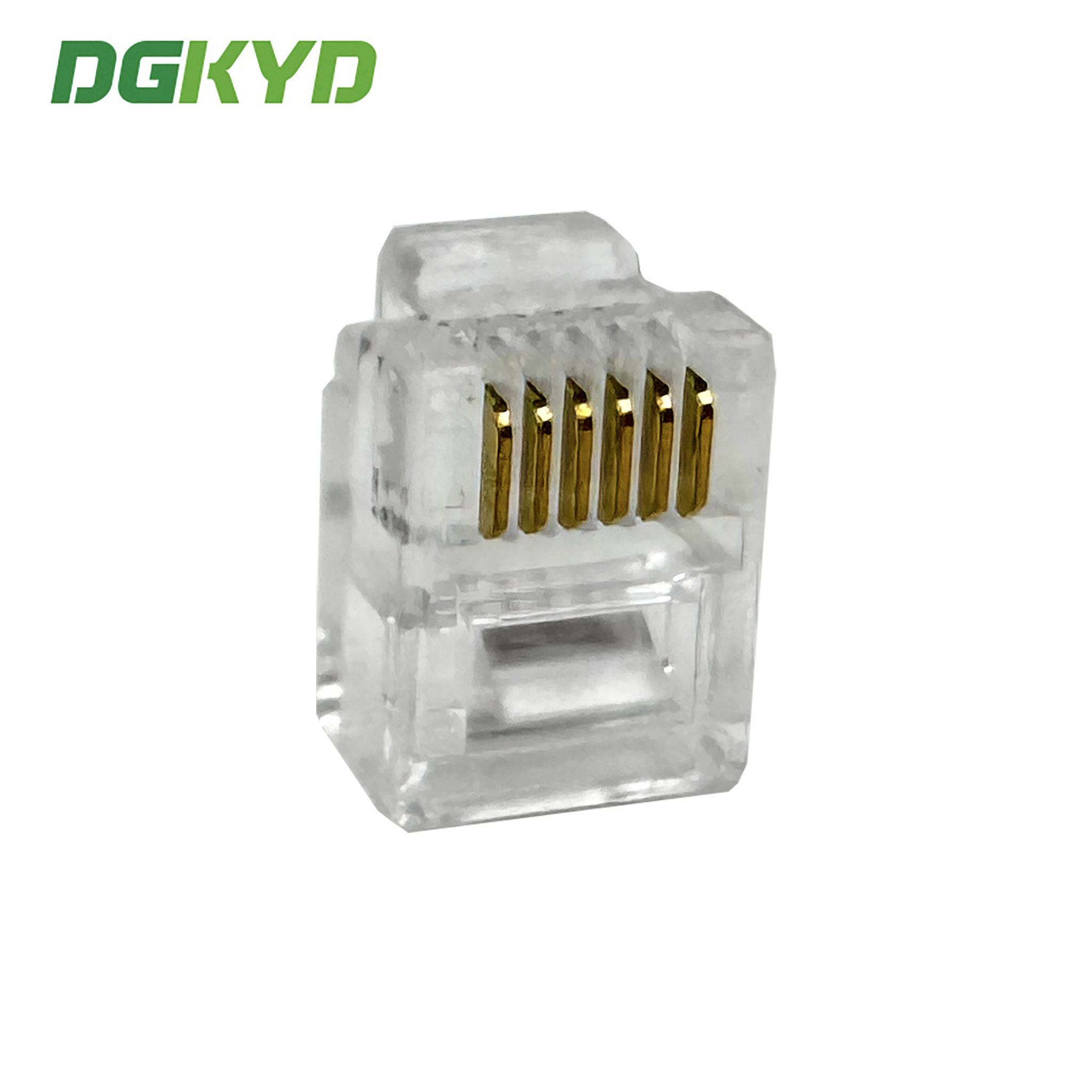

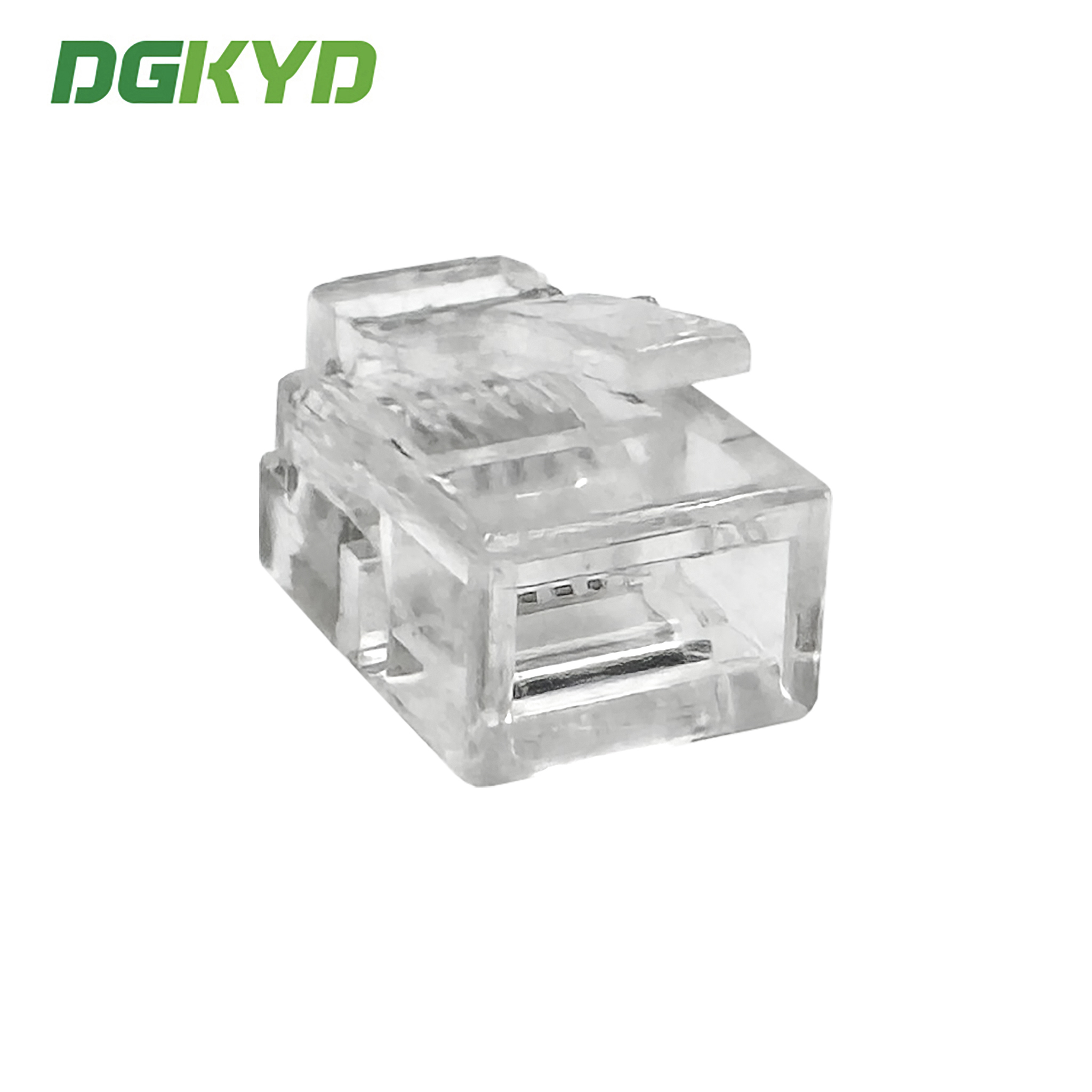

Product Images

Frequently Asked Questions

Q: Are you a trading company or manufacturer?
A: We are a manufacturer. Welcome to visit our factory.
Q: What about your lead time?
A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time confirmed based on order quantity.
Q: Can you provide samples? Are they free?
A: Yes. We typically provide 2-3 samples of standard products free for testing.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
