RJ45 network port connector without built-in transformer network interface single port shield 10 pins 10 contacts rj 45 LAN jack connector KRJ-5621S10P10CNL

Quantità di ordine minimo :	1 pezzo	Prezzo :	Please contact us to get the latest price.
Imballaggi particolari :	Vassoio in cartone	Tempi di consegna :	10 giorni
Termini di pagamento :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Capacità di alimentazione :	100K PC/giorno

Luogo di origine:	Dongguan della Cina	Marca:	DGKYD
Certificazione:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Numero di modello:	KRJ-5621S10P10CNL

Informazioni dettagliate
Categoria:	Prese modulari	Tipo di componente:	Jack PCB
Tipo:	RJ45	Magnetico:	Nessuno
Categoria delle prestazioni:	gatto 3 5	Tipo di Insetion:	Entrata laterale
Stile del supporto:	IMMERSIONE	OEM/ODM:	SÌ
Numero di posizioni/contatti:	10p10c (RJ45, Ethernet)	Ploting d'oro su pin di contatto:	G/Fu
Temperatura di conservazione:	-40 ° C ~+85 ° C.	Temperatura operativa:	-40 ° C ~+85 ° C.
Evidenziare:	RJ45 LAN jack connector without transformer , shielded RJ45 network port connector , 10-pin RJ45 LAN jack KRJ-5621S10P10CNL

Descrizione di prodotto

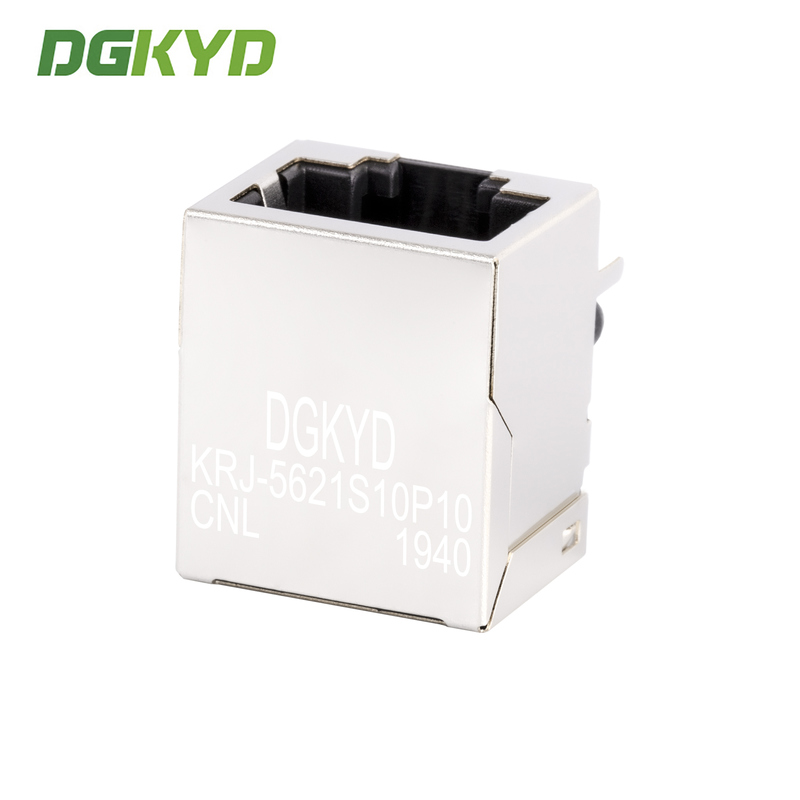

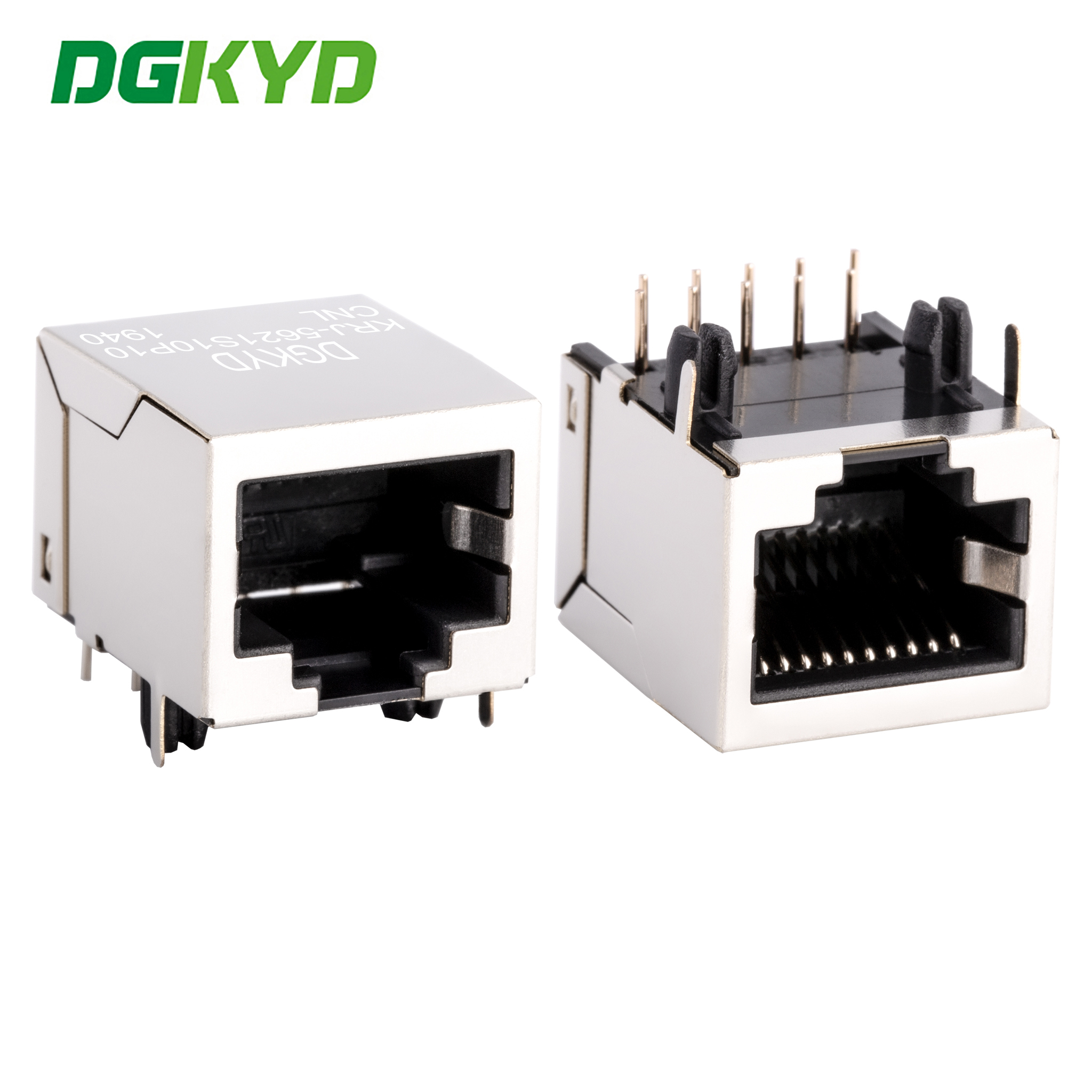

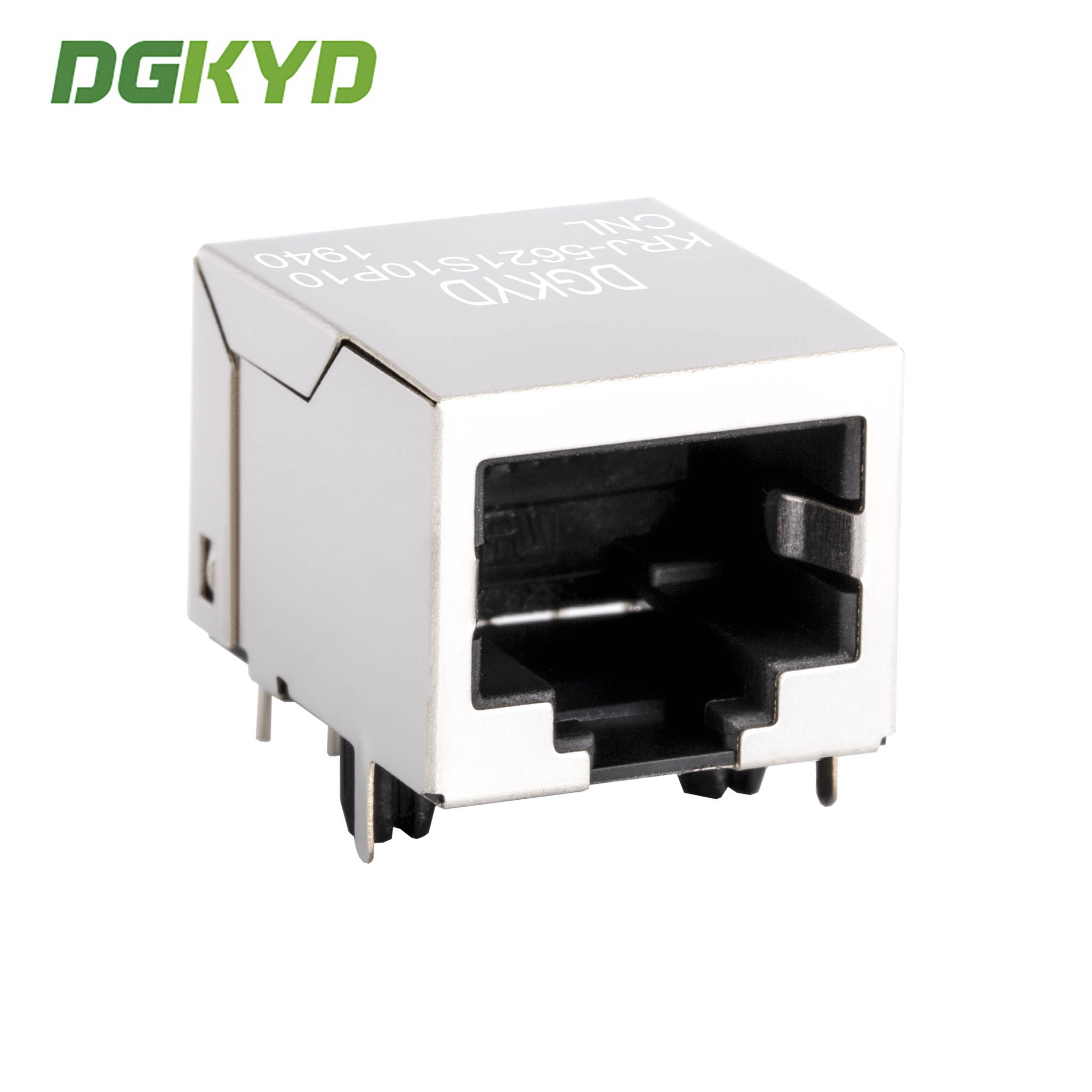

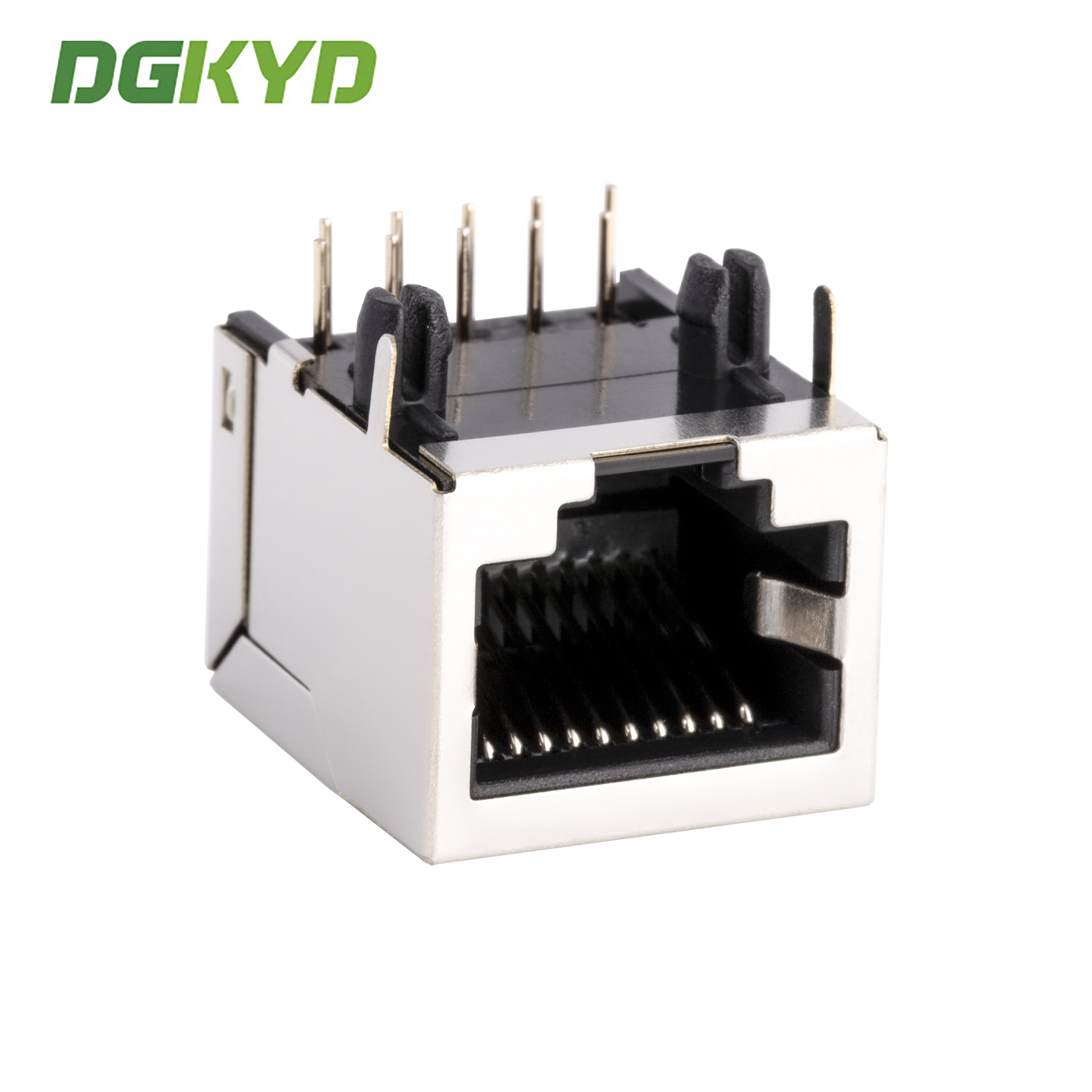

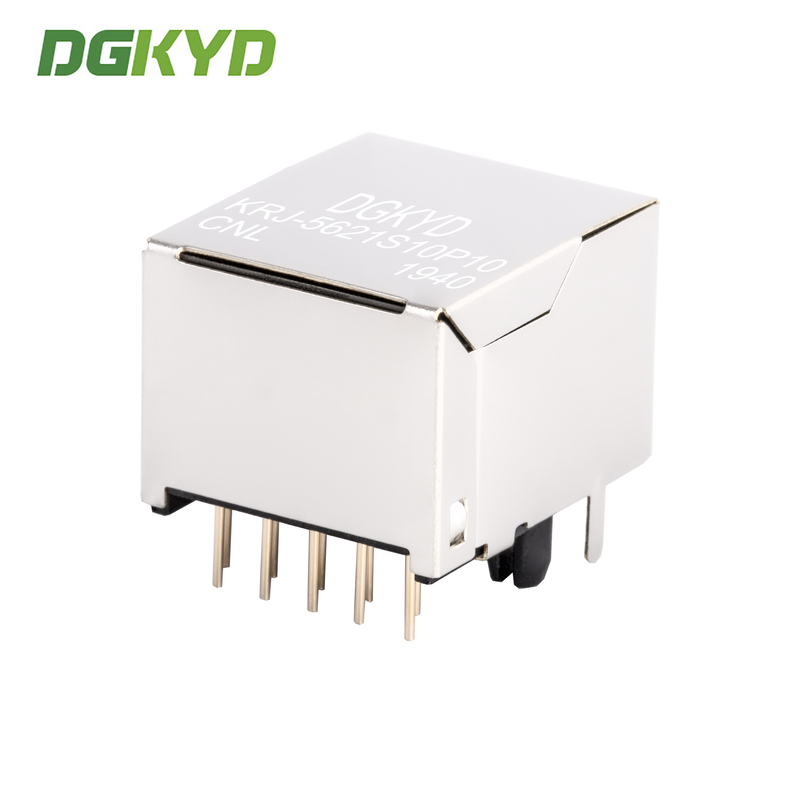

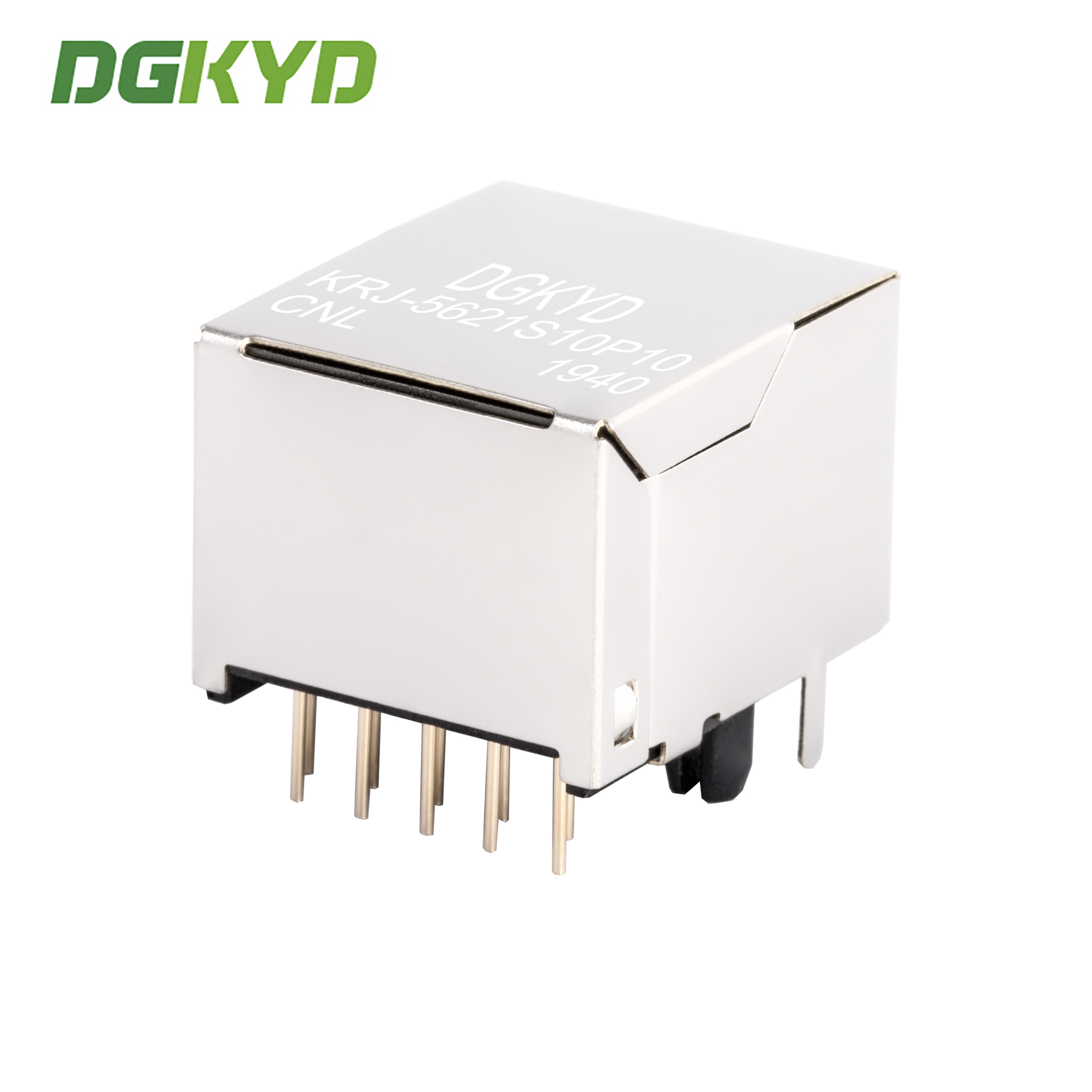

RJ45 Network Port Connector KRJ-5621S10P10CNL

Product Description

RJ45 network port connector without built-in transformer network interface single port shield 10 pins 10 contacts rj 45 LAN jack connector KRJ-5621S10P10CNL

Drawing

Parameters

Part Number	KRJ-5621S10P10CNL	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	Without Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	Single Ports	Number of Positions	10
Jack Configuration	1X1	Terminals per Port	10
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold G/Fu	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PA46 Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Our Strengths

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
Coil ratio of magnetic core
Magnetics circuit diversification optional
Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
Plastic housing material (PBT, PA46, PA9T, LCP)

The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
