16.9MM height Cat5e Rj45 Lan Jack , vertical RJ45 modular jack with magnetic DGKYD511B083AB3A8D

Quantità di ordine minimo :	1 pezzo	Prezzo :	Please contact us to get the latest price.
Imballaggi particolari :	Vassoio in cartone	Tempi di consegna :	10 giorni
Termini di pagamento :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Capacità di alimentazione :	100K PC/giorno

Luogo di origine:	Dongguan della Cina	Marca:	DGKYD
Certificazione:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Numero di modello:	Dgkyd511b083ab3a8d

Informazioni dettagliate
Tipo di interfaccia jack e plug modulare:	RJ45 con magnetica	Stile connettore:	RJ45 femmina Jack
Schermato:	Metal schermato	Velocità:	Cat5e
Indicatore di stato:	GUIDATO	Orientamento del chiavistello:	Ingresso superiore
Numero di posizioni/contatti:	8P8c (RJ45, Ethernet)	Ploting d'oro su pin di contatto:	6U
Temperatura di conservazione:	-40 ° C ~+85 ° C.	Temperatura operativa:	-40 ° C ~+85 ° C.
Evidenziare:	vertical RJ45 modular jack , Cat5e RJ45 LAN jack , magnetic RJ45 LAN connector

Descrizione di prodotto

16.9MM Height Cat5e RJ45 LAN Jack, Vertical RJ45 Modular Jack with Magnetic DGKYD511B083AB3A8D

Product Description

16.9MM height Cat5e RJ45 LAN Jack, vertical RJ45 modular jack with magnetic DGKYD511B083AB3A8D

Parameters

Part Number	DGKYD511B083AB3A8D	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Green/Green	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	Single Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

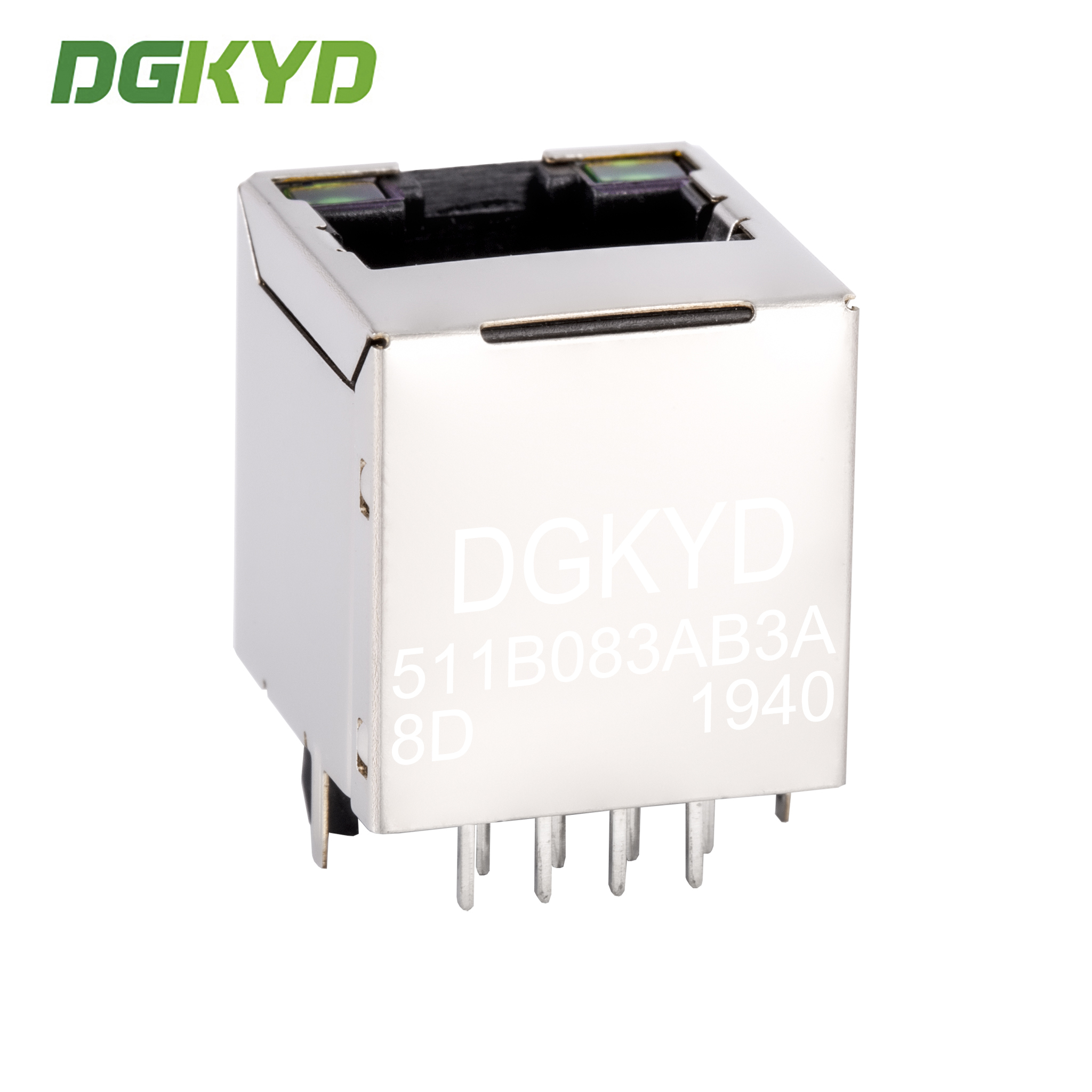

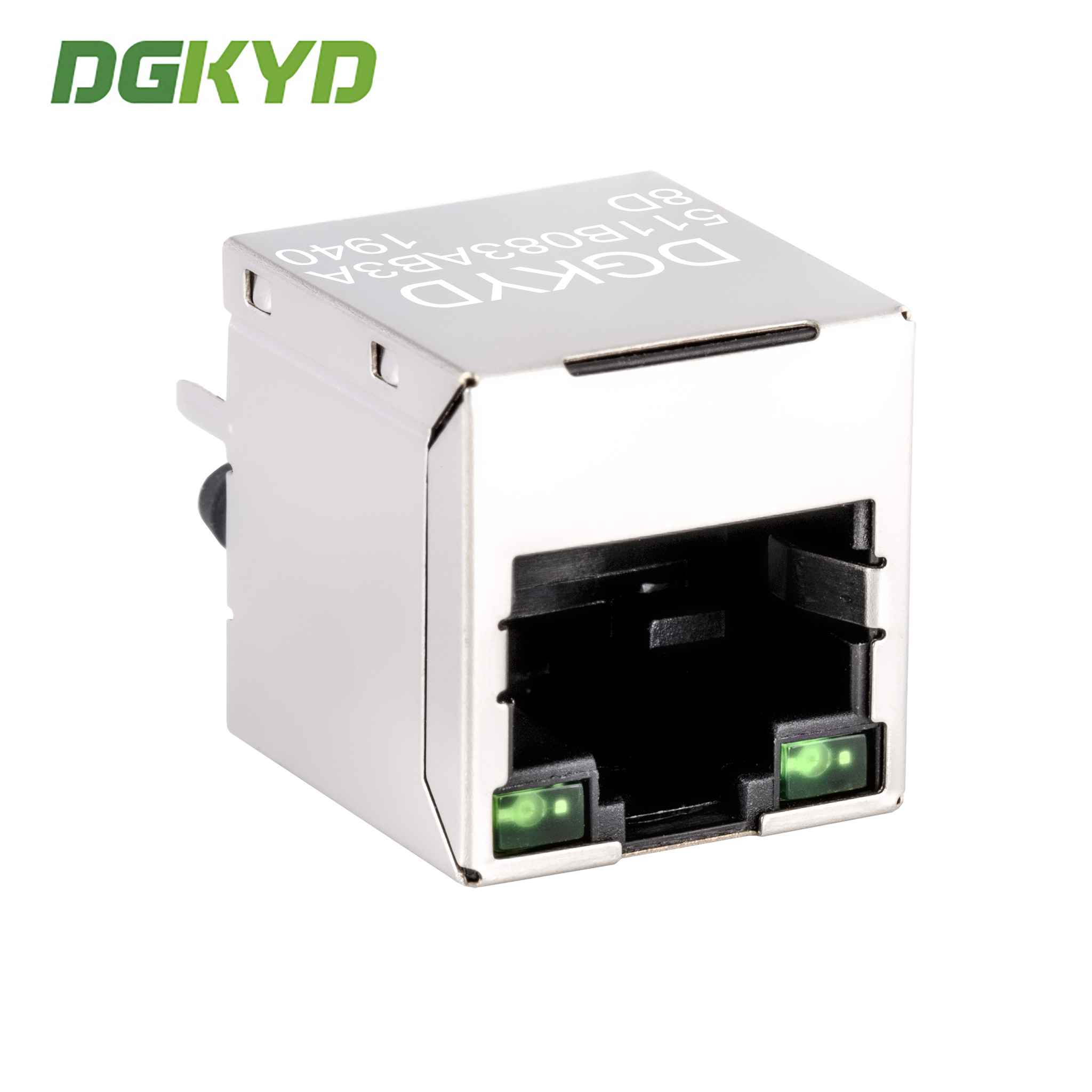

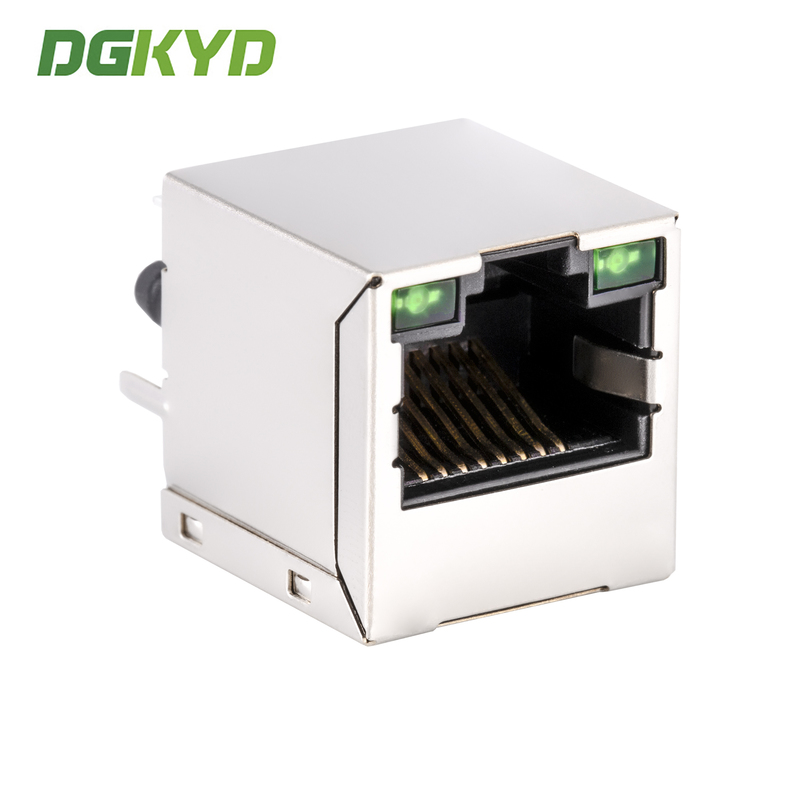

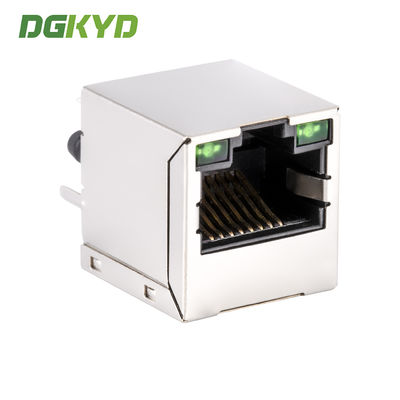

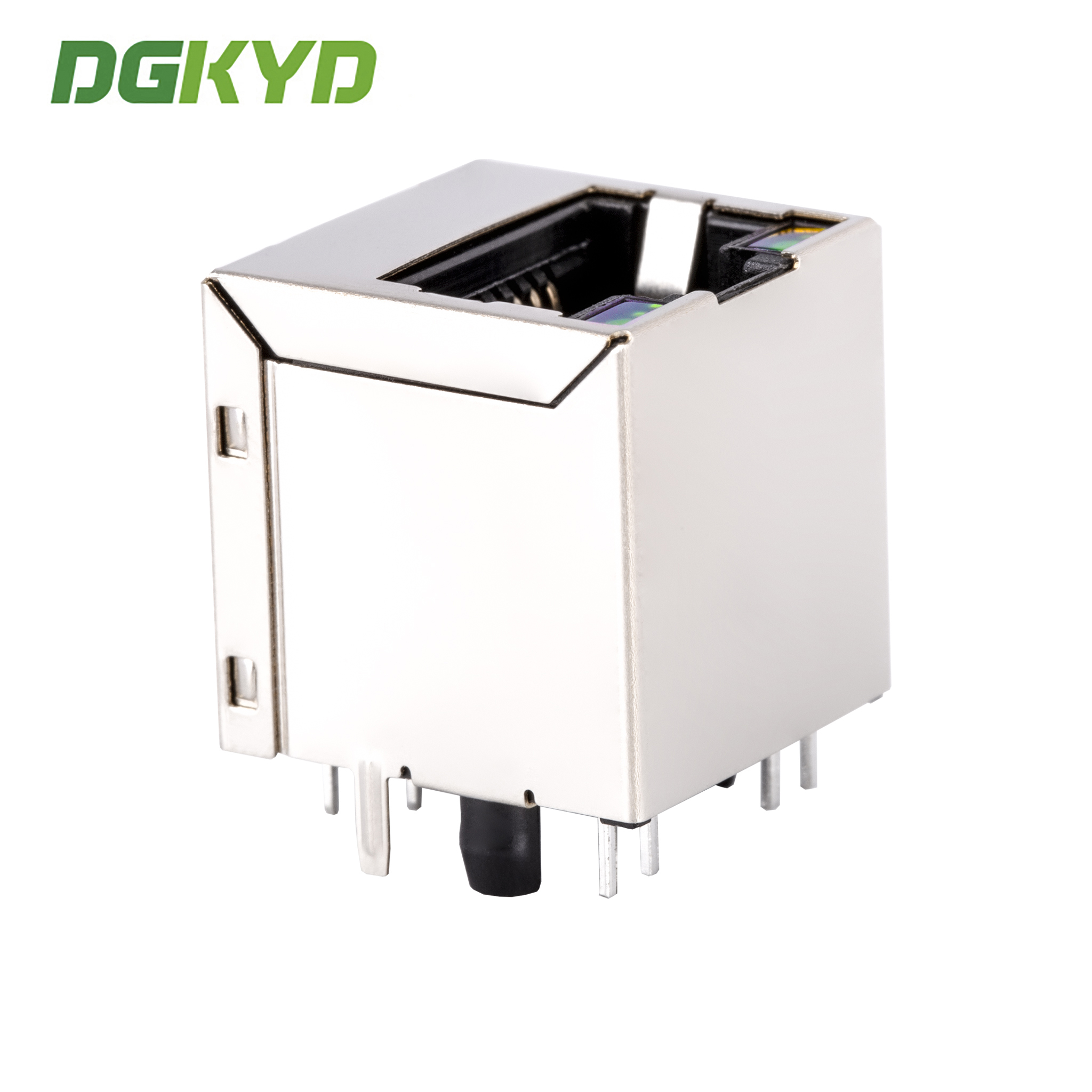

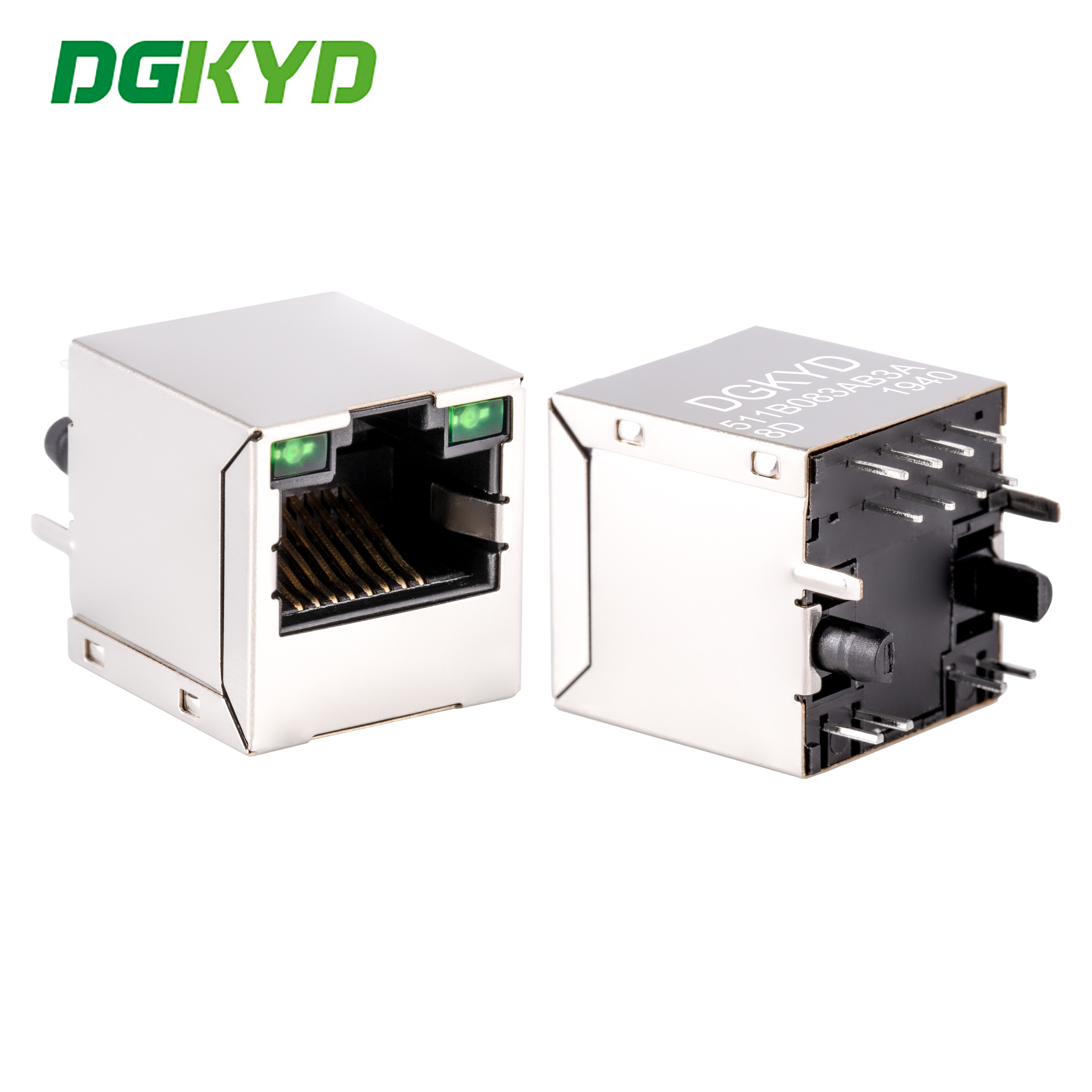

Product Images

Company Information

Product Features

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

Manufacturing Advantages

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Customization options available for LED indicators, shielding, coil ratio, magnetics circuit, contact plating, and housing material
Products meet industry standards for electrical properties, mechanical properties, and environmental protection

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
