Industrial Gigabit RJ45 Connector 1 Port with LED 180° Vertical Plug

Quantità di ordine minimo :	1

Luogo di origine:	Guangdong, Cina	Numero di modello:	DGKYD511Q030AC1A8D057

Informazioni dettagliate
Tipo:	RJ45	Genere:	Femmina
Colore a LED:	Giallo & verde	Placcatura:	Placcatura dorata 6u/15u/30u/50u
Materiale abitativo:	Poliestere di PBT	Filtro:	Con il filtro
Fermo:	Su	Numero di porte:	1 porto
Stile del supporto:	Attraverso il buco	Velocità di prestazione:	10/100/1000 Base-T
Opzioni di messa a terra:	Terra del pannello e terra del PWB	Terminali per porto:	8
Materiale scudo:	Lega di rame preplated con nichel	Contattare l'accoppiamento:	Oro 6u placcatura
Materiale di base di contatto:	Bronzo di fosforo
Evidenziare:	Industrial Gigabit RJ45 connector , RJ45 vertical plug with LED , Single port RJ45 connector

Descrizione di prodotto

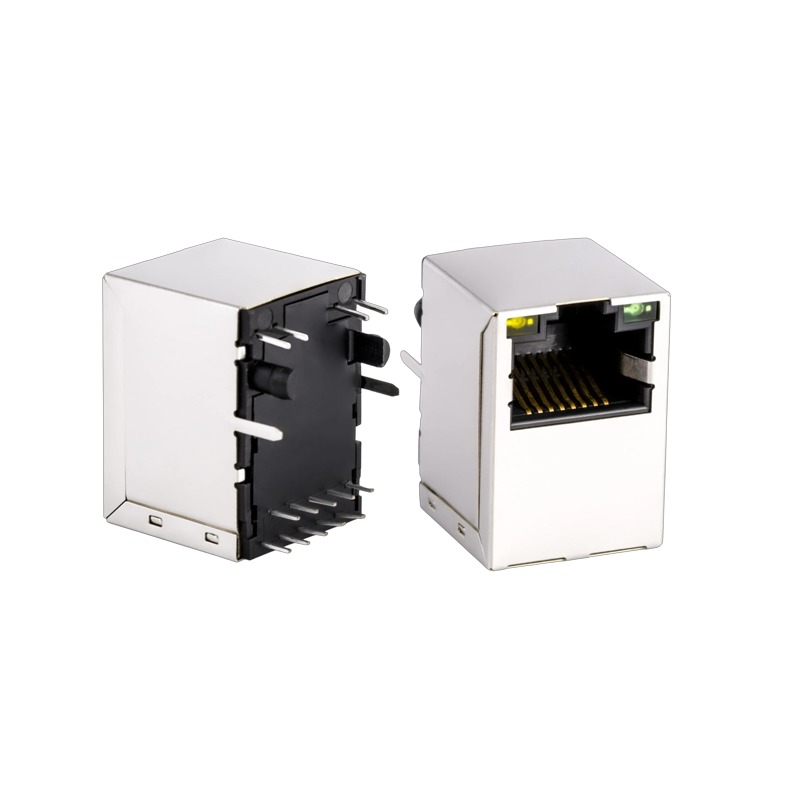

1x1 Port Industrial Gigabit Shielded RJ45 Connector with LED, 180° Vertical Plug - Communication Socket

High-performance industrial-grade RJ45 connector featuring shielded design, LED indicators, and 180° vertical plug configuration for reliable communication in demanding environments.

Product Specifications

Specification	Details
Part Number	DGKYD511Q030AC1A8D057
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Connector Assembly
Latch Style	Standard
Latch	Up
Filter	With Filter
LED Option	With LED
LED Color	Yellow & Green
Panel Stops	With Panel Stops
Shielded	YES
Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T
Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single ports
Number of Positions	10
Jack Configuration	1*1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)

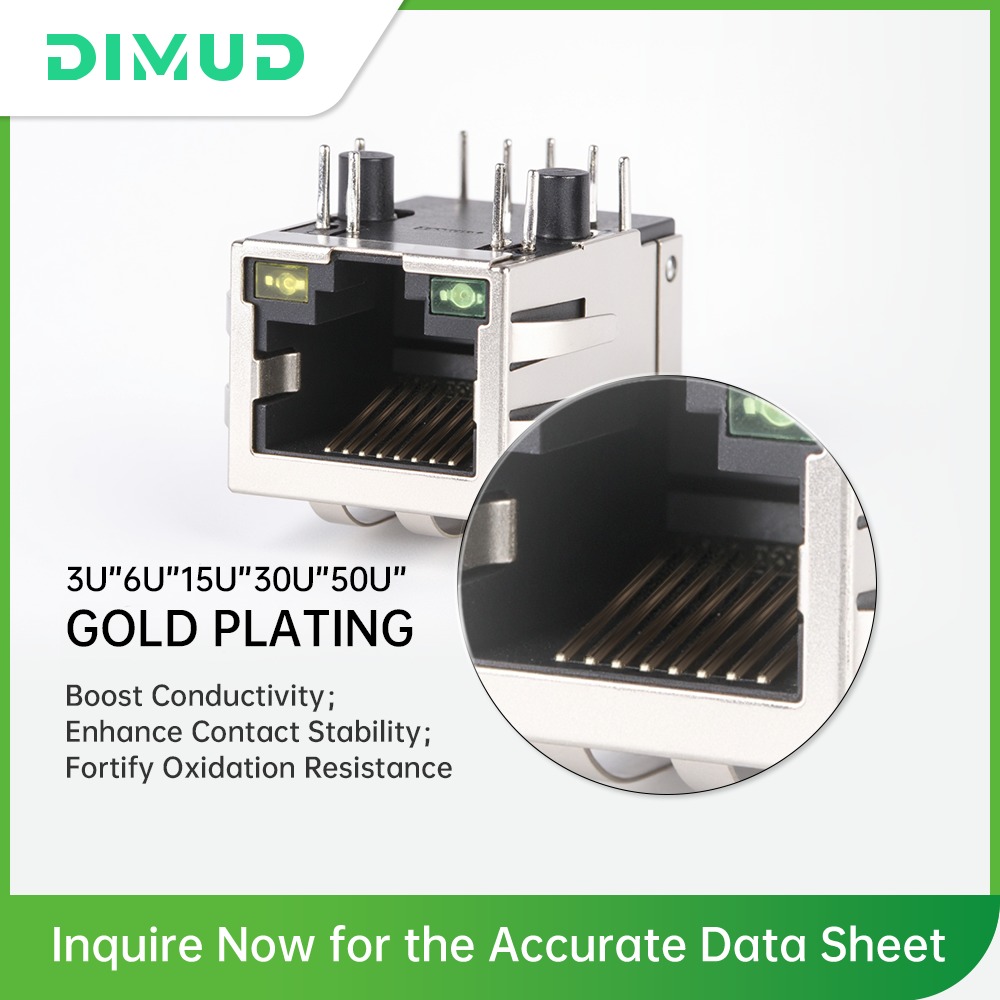

Contact Mating Area Plating Material	Gold 6u plating
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

Product Images
